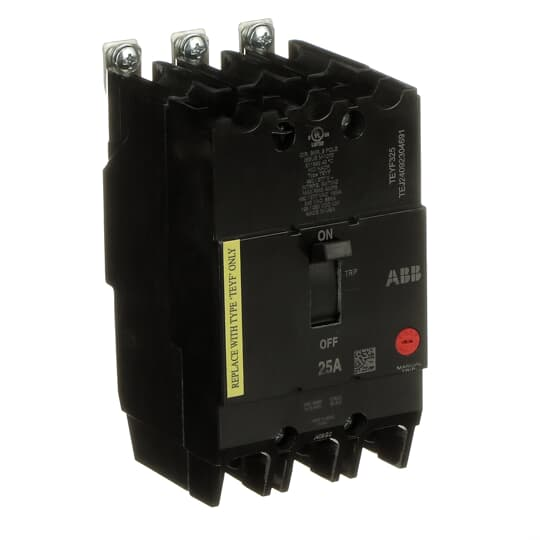

ABB TEYF325 3 Pole 25 Amp Circuit Breaker - Compact Design with Quick-Make/Break Mechanisms and Customizable Accessories

ABB TEYF325 3 Pole 25 Amp Circuit Breaker - Compact Design with Quick-Make/Break Mechanisms and Customizable Accessories

ABB
SKU:
TEYF325
|
UPC:
783164388497
Availability:
Commonly Stocked at Factory
$1,037.88
Condition:
New
Current Stock:
Description
The ABB TEYF325 Teyf 3 Pole 25 Amp circuit breaker is designed for optimal performance in grounded 480y/277 Vac systems. Its compact, one-inch wide per pole design and bolt-on mounting base make it versatile for various applications as a lug-lug breaker. This model features Quick-make / Quick-break mechanisms, common trip bars, and a clear trip indication for enhanced safety and reliability. Available in 1, 2, and 3 pole versions, the TEYF325 can be customized with auxiliary contact and shunt trip accessories to meet specific needs.
Additional Information
Amperage Rating:
25A
Standard:
E11592
Trip Type:
LI
Brand Name:
TEY / Q-Line (Bolt-On)
Interrupt Rating:
18kA@277 Vac / 65kA@120/240 Vac / 65kA@240 Vac / 18kA@480/277 Vac
Application:
Thermal Magnetic
Number Of Poles:
3
Sub Brand:
TEYF
Load Rating:
HACR
Connection:
#14-#10
Trip Range:
Non-Interchangeable
Frame:
TEYF
Spec Sheet:
View
