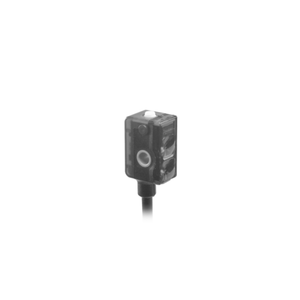

Baumer FNDK 07N6910 11079285
Baumer
$419.40
The Baumer FNDK 07N6910 11079285 is a light barrier equipped with a pulsed red LED light source with a wavelength of 660 nm. It features a background position of 17 to 45 mm and a scanning range of 82% of the background position. The device includes LED indicators for power (green) and output (yellow), and offers a sensing distance adjustment through a teach-in method. It supports suppression of reciprocal influence, ensuring reliable operation in complex environments. This model has a fast response and release time of less than 0.5 ms, operates on a voltage supply range of 10 to 30 VDC, and has a typical current consumption of 20 mA with a maximum of 25 mA. The output function can operate in light or dark conditions, and it includes an NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, with a rectangular housing made from durable plastic materials such as PMMA, MABS, and PA. The front optics are made of PMMA. It connects via a 2-meter cable on the bottom side and is rated IP 65 for protection against dust and water, making it suitable for a wide range of operating temperatures from -20 to +50 °C.
- Type:
- Light barrier
- Background position Sde:
- 17 45 mm
- Scanning range Sa:
- 82% Sde
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Cable bottom side, 2 m
- Protection class:
- IP 65
- Operating temperature:
- -20 +50 °C
