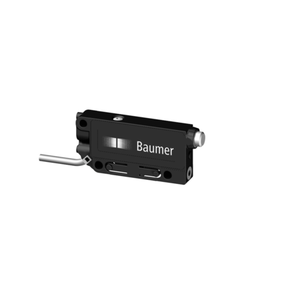

The Baumer UNCK 09G8914 11011507 is a high-performance ultrasonic sensor with a scanning range of 30 to 200 mm and a repeat accuracy of 0.5 mm. It features a quick response and release time of less than 7 ms, operates at a sonic frequency of 380 kHz, and includes a teach-in adjustment for easy setup. The sensor is equipped with both green and red LED output indicators and offers a push-pull output circuit with a maximum output current of 100 mA. It supports a voltage supply range of 12 to 30 VDC and has a low current consumption of 35 mA. The sensor is designed with a robust rectangular PA 12 housing, measuring 8.6 mm in width, 55 mm in height, and 24.5 mm in depth, and includes a 2-meter PUR cable connection. It operates within a temperature range of 0 to +60 °C and is IP 67 rated, ensuring protection against dust and water ingress. Additional features include short circuit and reverse polarity protection, ensuring reliable and safe operation in various industrial applications.
- Scanning range Sd:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Cable PUR 4 x 0,08, 2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
