Baumer URCK 09G8914/KS35A 11011523
Baumer
$891.00

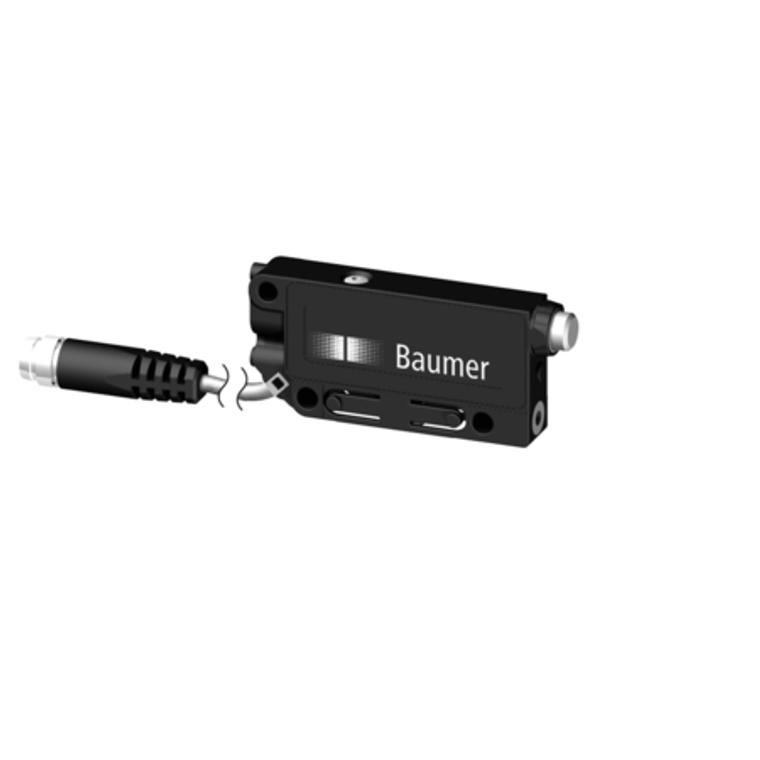

The Baumer URCK 09G8914/KS35A 11011523 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 0 to 200 mm. It features a reflector position range of 60 to 200 mm with an adjustable operating range of ±2.5% and a limit range of ±5% of the reflector position. The sensor offers a repeat accuracy of 1.5 mm and is resistant to temperature drifts of less than 2%. It has a quick response and release time of less than 7 ms each, operates at a sonic frequency of 380 kHz, and includes a teach-in adjustment for easy setup. The alignment aid through target indication flashing and dual-color LED output indicators enhance usability. It operates on a 12 to 30 VDC supply, with a maximum current consumption of 35 mA when idle, and supports a push-pull output circuit with a maximum output current of 100 mA. The sensor is designed with a robust rectangular PA 12 housing, measuring 8.6 mm in width, 55 mm in length, and 24.5 mm in depth, and includes a flylead connector M8 for connectivity. Suitable for operating temperatures ranging from 0 to +60 °C, it is equipped with IP 67 protection, ensuring durability and reliability in various environmental conditions. The sensor also features short circuit and reverse polarity protection for enhanced safety and stability.
- Scanning range Sd:
- 0 200 mm
- Reflector position Sde:
- 60 200 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
