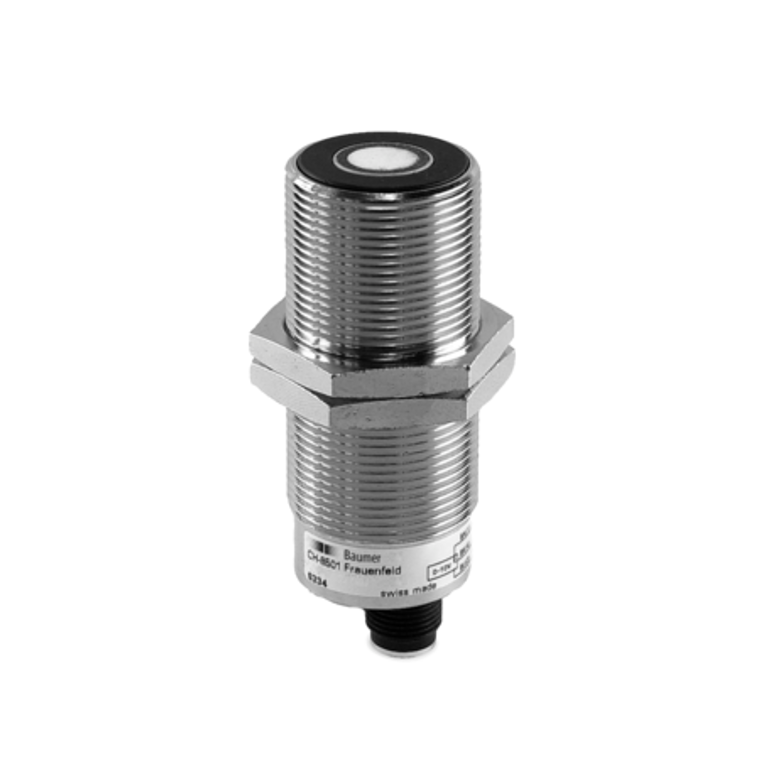

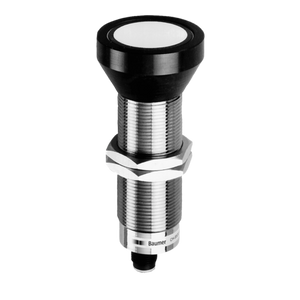

The Baumer UZAM 30N6103/S14 is a 2-point proximity switch with a scanning range of 100 to 1000 mm. It features a standard version with a typical hysteresis of 4% Sde and a repeat accuracy of 0.5 mm. The sensor has a temperature drift of less than 2% Sde and response and release times of less than 40 ms. Operating at a sonic frequency of 240 kHz, it includes a Teach-in adjustment and target indication flashing for alignment aid. The output is indicated by green/yellow LEDs, and it operates on a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. The output circuit is an NPN make function (NO) with an output current of 200 mA and a voltage drop of less than 2 VDC. It also features short circuit and reverse polarity protection. The sensor is housed in a cylindrical, nickel-plated brass body, measuring 30 mm in diameter and 70 mm in length, and connects via an M12 connector. It operates within a temperature range of -10 to +60 °C and is IP 67 rated for protection against dust and water ingress.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 100 1000 mm
- Scanning range far limit Sde:
- 100 1000 mm
- Version:
- Standard
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 40 ms
- Release time toff:
- < 40 ms
- Sonic frequency:
- 240 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
