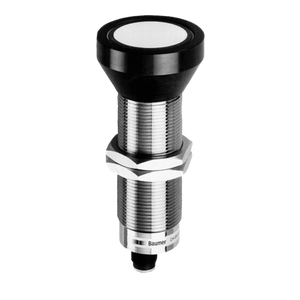

The Baumer UZAM 50N6121 10131013 is a 2-point proximity switch featuring a scanning range of 350 to 2500 mm with a typical hysteresis of 4% and repeat accuracy of 1 mm. It operates with a sonic frequency of 120 kHz and includes a teach-in adjustment and target indication flashing for alignment aid. The output is indicated by green/yellow LEDs, and it supports a voltage supply range of 12 to 30 VDC with a maximum current consumption of 40 mA. The output circuit is an NPN make function (NO) with an output current of 200 mA. It offers short circuit and reverse polarity protection, housed in a cylindrical, nickel-plated brass body measuring 30 mm in diameter and 95 mm in length. The connection is facilitated via a 2-meter cable. This device operates within a temperature range of -10 to +60 °C and is rated IP 67 for protection against dust and water ingress.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 350 2500 mm
- Scanning range far limit Sde:
- 350 2500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 160 ms
- Release time toff:
- < 160 ms
- Sonic frequency:
- 120 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
