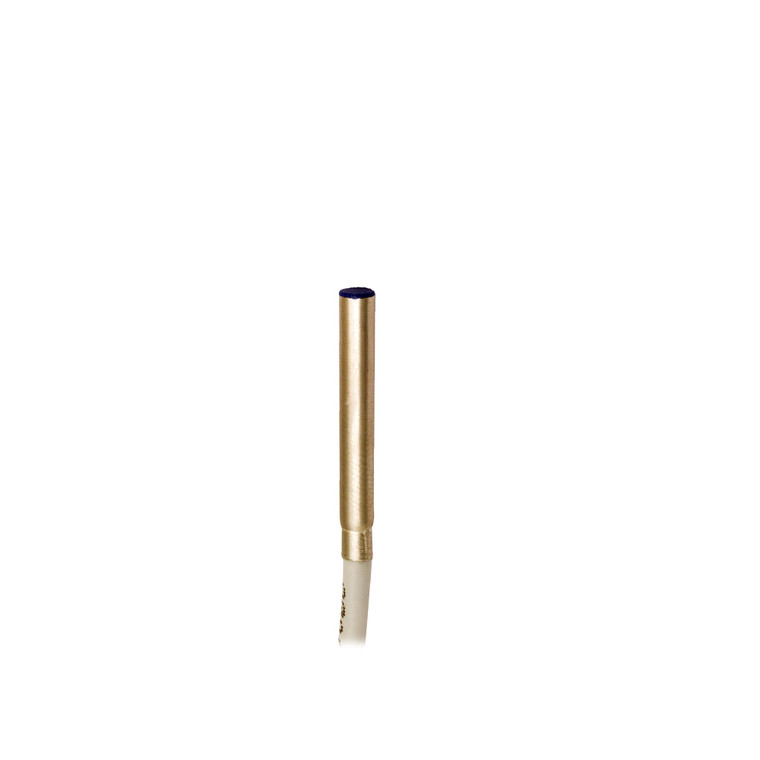

Datasensing AC6/AP-1A Sensors

The Datasensing AC6/AP-1A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a smooth stainless steel housing with a compact Ø4 mm diameter, these sensors are equipped with a yellow output LED that is visible from 360°, ensuring easy status monitoring. The sensors offer a nominal sensing distance of 0.8 mm and an operating distance of 0 to 0.65 mm, making them ideal for applications requiring close proximity detection. These sensors are available with a 2 m PVC cable or M8 connector models, providing flexibility in installation. With an IP67 protection degree, they are resistant to dust and water, suitable for harsh environments. The sensors operate on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. They feature a PNP output type with a normally open (NO) function, and a switching frequency of 5kHz, ensuring fast and accurate response times. Built with AISI303 stainless steel housing and PBT active head material, these sensors are durable and robust. They include essential protections such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The sensors are CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards, and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Ideal for industrial applications, the Datasensing AC6/AP-1A Sensors provide reliable performance with repeat accuracy of < 5% and a thermal drift of Sr < 10%. They are shielded for flush mounting and operate efficiently within a temperature range of -25°C to +70°C. With a weight of just 30g and compact dimensions of Ø4 / L = 24.9mm, these sensors are easy to integrate into various systems, offering a seamless solution for proximity sensing needs.
