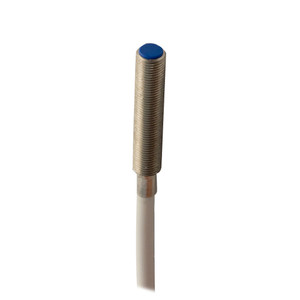

Datasensing AD6/AP-1A8FVF80 Sensors

The Datasensing AD6/AP-1A8FVF80 is a high-performance inductive sensor designed for precision and reliability. Featuring an M5 short case flush mount, this sensor offers a nominal sensing distance of 0.8mm and an operating distance range of 0 to 0.65mm. It is equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection with a switching frequency of 5kHz. The sensor operates within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. Constructed with durable AISI303 stainless steel housing and an active head made of PBT, the sensor is designed to withstand harsh environments, offering mechanical protection rated at IP67. It includes a 200mm axial PUR cable with an M8 3-pin plug for easy connectivity. The sensor is equipped with a yellow LED indicator to display output state and features comprehensive protection mechanisms, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The Datasensing AD6/AP-1A8FVF80 is engineered for stability, with a thermal drift of Sr less than 10% and repeat accuracy under 5% at 24V and 23°C ±5°C. It also boasts a correction factor for various materials, including copper, aluminum, brass, and stainless steel. The sensor is CE and cULus approved, ensuring compliance with international standards, and is compatible with IEC 60947-5-2 for EMC. It is also designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M5x0.5 nuts, this sensor is ready for immediate installation and use in a variety of industrial applications.
