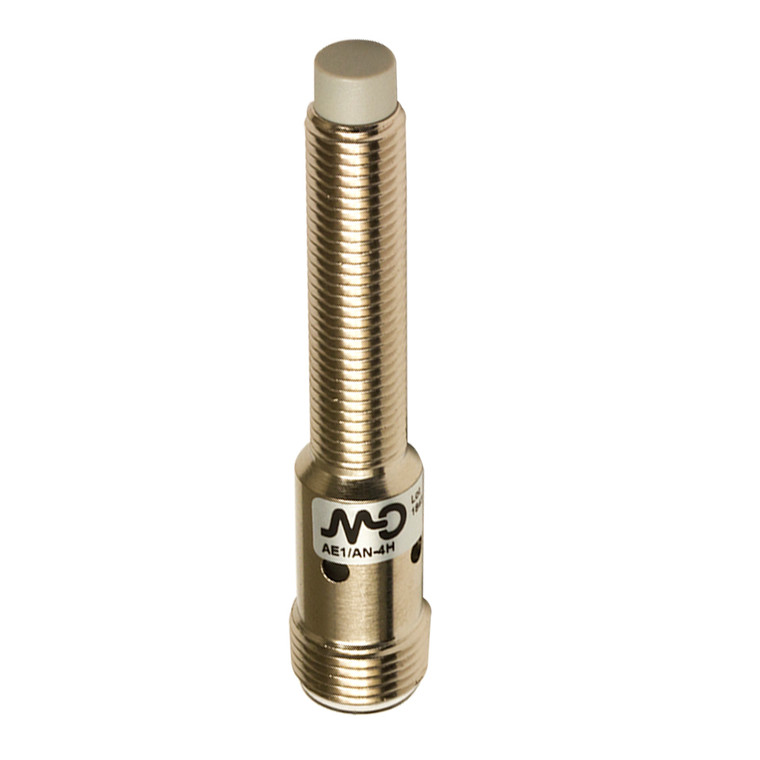

The Datasensing AE1/AN-2H Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature an M8 unshielded NO/NPN connection with an M12 plug, ensuring seamless integration into your systems. With a nominal sensing distance of 2.5mm and an operating range of 0 to 2.02mm, they are ideal for detecting standard targets of 8x8mm FE360. The sensors boast a robust nickel-plated brass housing with IP67 protection, making them suitable for harsh environments. The 360° visible LED status indicator provides clear operational feedback, while the ATEX models cater to specific safety requirements. These sensors offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. With a switching frequency of 5kHz and a load current capacity of up to 200mA, they deliver high performance and reliability. The compact design, with dimensions of M8 x 1 and a length of 60mm, allows for easy installation, and the included M8x1 nuts ensure secure mounting. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are a versatile choice for various industrial applications.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,43 / aluminium: 0,51 / brass: 0,59 / stainless steel: 0,83
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 20g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M8x1
- Mechanical Protection:
- IP67
