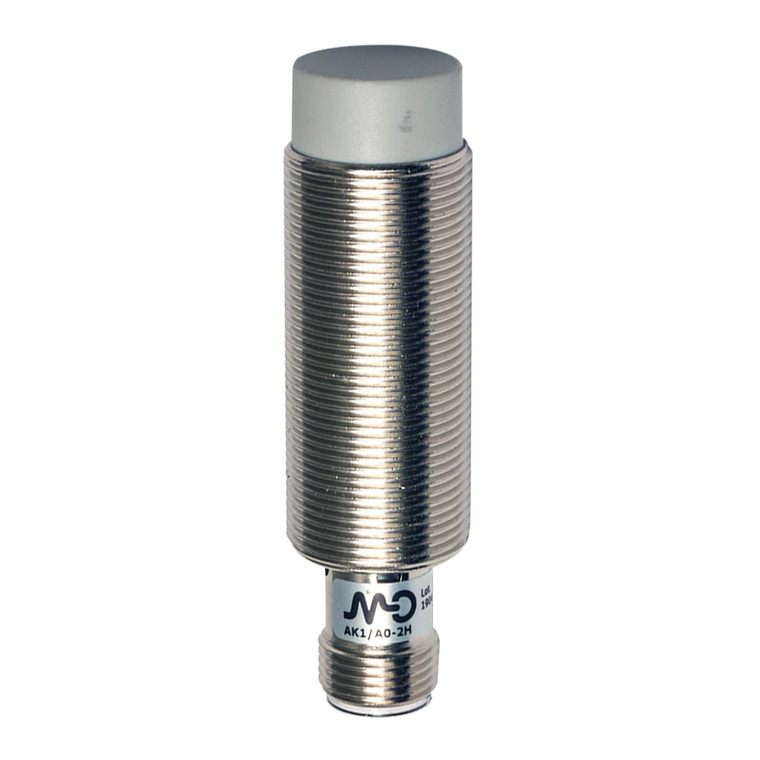

Datasensing AK1/A0-2H Sensors
Datasensing
$55.70
The Datasensing AK1/A0-2H Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, these sensors are ideal for precise proximity detection. They feature a standard target size of 24x24mm FE360 and offer correction factors for different materials, including copper, aluminum, brass, and stainless steel. The sensors are equipped with a robust M18 standard no-flush mount and are constructed from durable nickel-plated brass, ensuring longevity and reliability.
These sensors operate with a switching frequency of 300Hz and support an operating voltage range of 10 to 30Vdc. They are designed with NPN/PNP output types and a normally open (NO) output function. The sensors are equipped with a yellow LED indicator for output state, providing clear visual feedback. They also include essential protective features such as short-circuit protection, reverse polarity protection, impulsive overvoltage protection, and protection against inductive loads.
The AK1/A0-2H Sensors are easy to install with M12 plug connections and come with supplied accessories, including two M18x1 nuts. They are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a high degree of protection rated at IP67. Additionally, they meet CE and UR approvals and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet rigorous safety and performance standards.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- 3 100mA
- Leakage current:
- ? 0,? 8mA
- Output voltage drop:
- ? 2,8V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 55g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
