- Nominal sensing distance:
- 0
10mm
- Operanting distance:
- 0
10mm
- Standard target:
- 30x30mm FE360
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- 0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C)
- Resolution:
- ?2µm

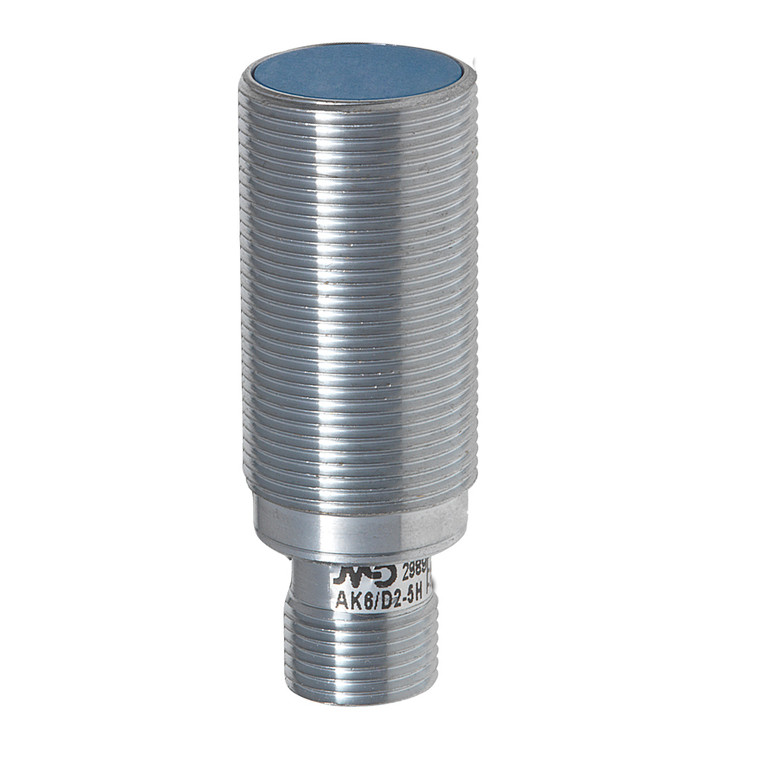

- Description:
- M18 short case no-flush mount
- Functions:
- Proximity
- Output type:
- Analogue
- Output Function:
- Analogue
- Voltage Analogue Output:
- 1 x 0...10V
- Current Analogue Output:
- 1 x 4...20mA
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 10mA
- Max ripple content:
- ? 20%
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Max output current:
- 4mA ± 0,? 8mA (23°C) 20mA ± 0,? 8mA (23°C)
- Impulsive Overvoltage Protection:
- Yes
- Maximum capacitance load:
- 500? (UB = 15V) / 1k? (UB = 30V)
- Output voltage:
- 0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C)
- Mounting:
- Partially Shielded
- Weight:
- 55g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
