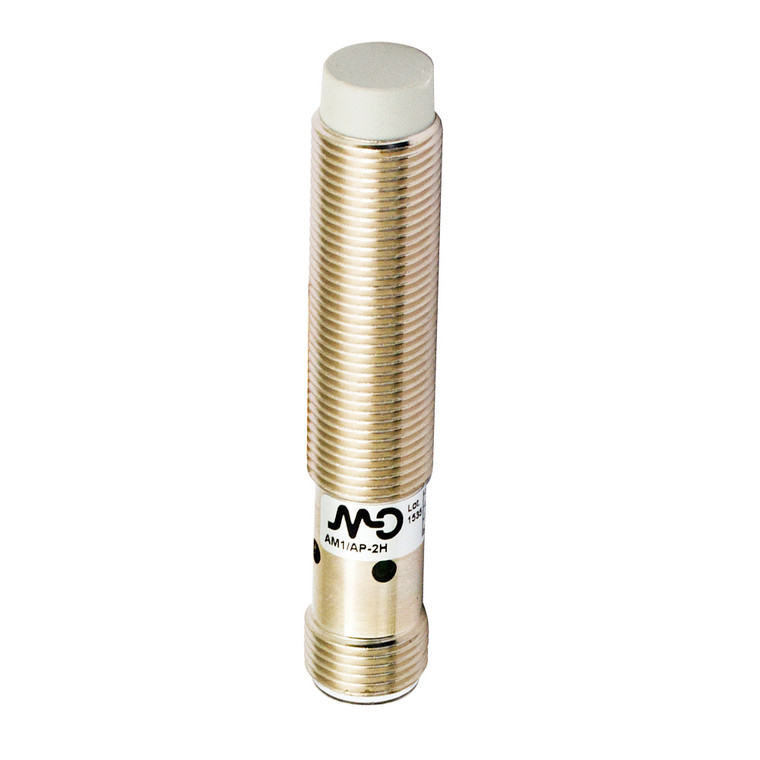

The Datasensing AM1/AP-4H Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating range of 0 to 6.48mm, these sensors are ideal for precise proximity detection. They feature a standard target size of 24x24mm FE360 and offer correction factors for different materials such as copper, aluminum, brass, and stainless steel. The sensors boast a thermal drift of less than 10% and a repeat accuracy of under 5%, ensuring reliable performance.
Equipped with a PNP output type and a normally open (NO) output function, the AM1/AP-4H sensors support a switching frequency of 2kHz and operate within a voltage range of 10 to 30Vdc. They are designed to handle a load current of up to 200mA with minimal leakage and output voltage drop. The sensors are protected against short circuits, reverse polarity, impulsive overvoltage, and inductive loads, making them robust and durable.
Constructed with a nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, with an IP67 degree of protection and resistance to shocks and vibrations. They are suitable for operating temperatures ranging from -25°C to +70°C. The sensors come with an M12 plug connection and include two M12x1 nuts for easy installation. CE and UR approved, the Datasensing AM1/AP-4H Sensors are a reliable choice for industrial sensing needs.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,46 / brass: 0,52 / stainless steel: 0,71
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 30g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
