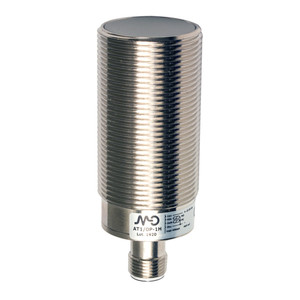

Datasensing AT1/AP-2B86 Sensors
Datasensing
$68.05
The Datasensing AT1/AP-2B86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M30 unshielded design, these sensors operate with a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm. They are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection. The sensors are constructed with a robust nickel-plated brass housing and a durable PBT active head, providing excellent mechanical protection with an IP67 rating.
These sensors are engineered to handle a wide range of applications, with a switching frequency of 200Hz and an operating voltage range of 10 to 30Vdc. They offer a no-load supply current of ? 20mA and a load current of ? 400mA, with a minimal output voltage drop of ? 1V at 400mA. The sensors are equipped with advanced protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads.
The AT1/AP-2B86 Sensors are designed for easy installation with a 5m PVC cable connection and come with two M30x1.5 nuts for secure mounting. They are compliant with CE and UR approvals and meet EMC compatibility standards as per IEC 60947-5-2. With a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5%, these sensors ensure consistent performance even in challenging environments, operating efficiently within a temperature range of -25°C to +70°C.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M30x1.5
- Dimensions:
- M30 x 1,5 / L = 80mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
