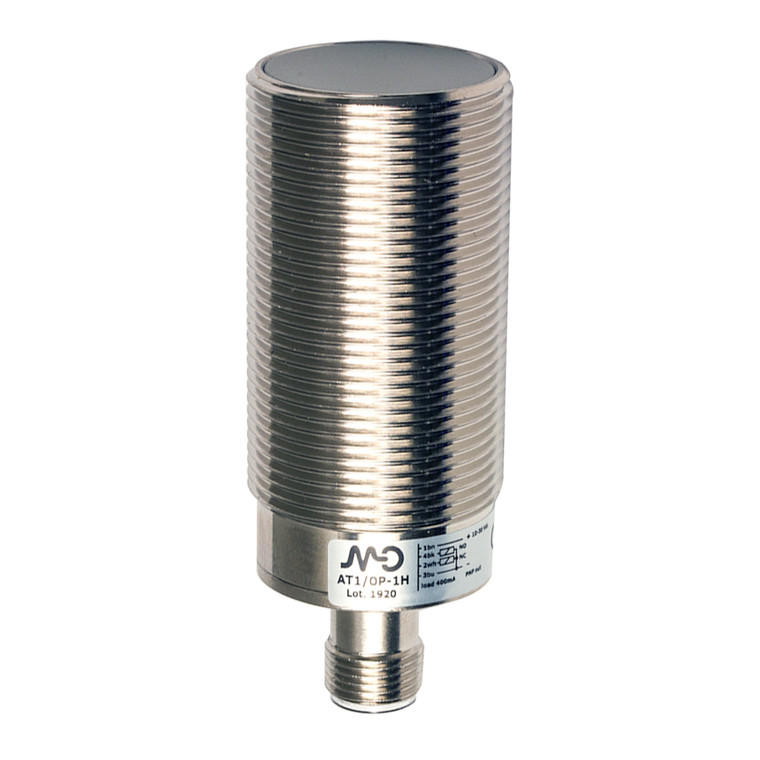

Datasensing AT1/CP-3H Sensors
Datasensing
$70.67
The Datasensing AT1/CP-3H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, these sensors are ideal for detecting standard targets of 45x45mm FE360. With a robust M30 standard flush mount design, they offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
These sensors are equipped with a PNP output type and an NC output function, ensuring efficient proximity detection with a switching frequency of 200Hz. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. The output voltage drop is minimal at ? 1V @400mA, and the sensors feature a yellow LED indicator for output state visibility.
Constructed with durable nickel-plated brass housing and an active head made of PBT, the AT1/CP-3H Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. The sensors are EMC compatible with IEC 60947-5-2 standards and are approved by CE and UR.
The sensors come with an M12 plug connection and are supplied with two M30x1.5 nuts for secure installation. With a weight of 150g and dimensions of M30 x 1.5 / L = 76mm, these sensors are easy to integrate into existing systems. The AT1/CP-3H Sensors are also available in ATEX models, category 3, upon request, and offer models with complementary output (NO + NC) for versatile application needs.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,70
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 150g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
