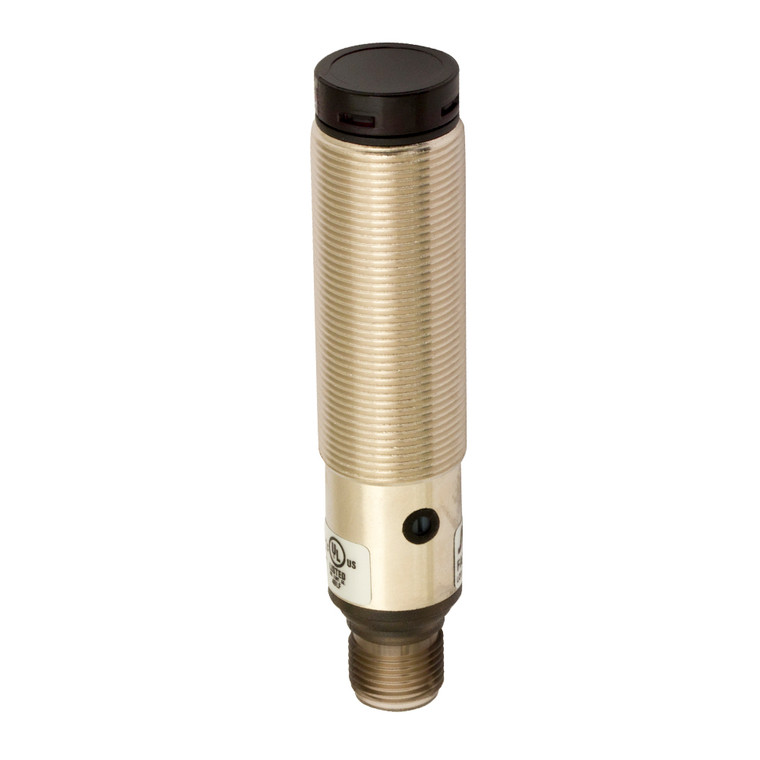

The Datasensing FAI2/BP-1E5I Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. With a robust M18 housing available in both metallic and plastic options, they ensure durability and adaptability in various environments. The sensors operate on a 10...30 VDC power supply and are equipped with PNP NO+NC output types, providing flexibility in integration.
Engineered for high performance, the FAI2/BP-1E5I Sensors boast a switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. They are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C, and up to +110°C for the optical head. The sensors are protected against short circuits, overvoltage, and reverse polarity, ensuring reliable operation and longevity.
The sensors feature LED indicators for easy status monitoring and are equipped with a sensitivity adjustment function for precise calibration. With IP67 protection, they are resistant to dust and water ingress, making them suitable for demanding industrial applications. The Datasensing FAI2/BP-1E5I Sensors are CE and cULus listed, ensuring compliance with international safety standards.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze) -25°C +110°C Optical head
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
