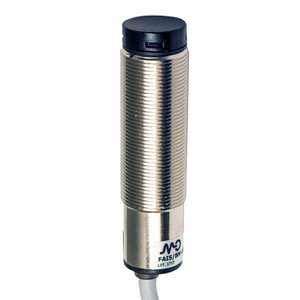

The Datasensing FAIH/00-0ADA Sensors are high-performance photoelectric sensors designed for precise and reliable detection. Featuring an M18 axial emitter with a nominal sensing distance of 20 meters, these sensors are equipped with a 2-meter plastic cable and glass optic for enhanced durability and performance. With a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%, these sensors ensure consistent operation without the need for sensitivity adjustment. Operating on a voltage range of 10 to 30VDC, they offer a switching frequency of 250Hz and a rapid response time of 2ms. The sensors are housed in robust PBT/PC material with a glass active head, providing IP67 mechanical protection and resistance to shocks and vibrations as per IEC standards. Additional features include LED infrared emission at 880nm, yellow LED indicators for power status, and reverse polarity protection. Supplied with M18 x 1 nuts, these sensors are CE and cULus approved, ensuring compliance with international safety standards. Ideal for industrial applications, they operate efficiently in temperatures ranging from -25°C to +70°C.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (powerON)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Housing Material:
- PBT/ PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
