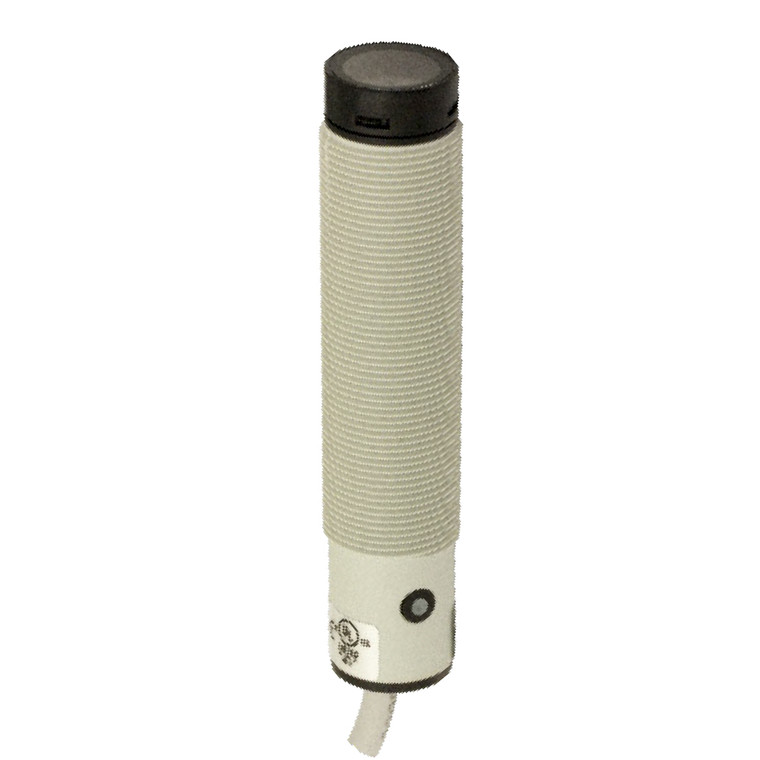

The Datasensing FALH/X0-0A Sensors offer a comprehensive solution for precise detection needs, featuring a complete range of M18 sensors powered by a 10...30 Vdc supply. Designed with both axial and radial optics and a flat surface, these sensors utilize a visible red laser emission for accurate performance. With an IP67 protection degree, they are built to withstand harsh environments, available in both metallic and plastic housings. Sensitivity adjustment is a standard feature across all models, ensuring adaptability to various applications. The sensors provide total protection against any type of electric damages and are CE and cULus listed for quality assurance.
Key specifications include a nominal sensing distance of 50m, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The function principle operates as an emitter with a check, and the optic position is axial. The sensors are equipped with LED indicators for power and emission status, and they feature reverse polarity protection. The emission is a class 1 red laser at 650nm, housed in a durable PBT/PC material with a 2m PVC cable connection. The sensors are designed to operate in temperatures ranging from -15°C to +55°C without freezing, and they meet EMC compatibility standards EN 60947-5-2. Additionally, they are resistant to shocks and vibrations as per IEC standards, ensuring reliable performance in demanding conditions. Supplied with M18 x 1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Emitter with check
- Emitter/Receiver:
- Emitter
- Check Input:
- BK/2 connected to 0Vdc swithing off the emission
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
