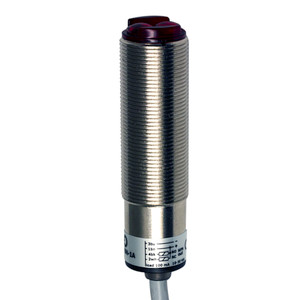

The Datasensing FARS/BN-1A Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for various applications. The retro-reflective models are specifically designed for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for enhanced durability. Available in both metallic and plastic housings, these sensors provide flexibility in installation and application.
Each model includes sensitivity adjustment via a trimmer, ensuring precise detection capabilities. The sensors are equipped with total protection against any type of electric damages, including short-circuit protection with auto-reset, overvoltage, and reverse polarity protection. The nominal sensing distance is 130mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The minimum sensing distance, or blind zone, is 30mm, and the function principle is based on background suppression.
The sensors feature an NPN NO+NC output type and function, with a switching frequency of 1kHz and a response time of 500µs. They operate efficiently within a voltage range of 10
30VDC, with a no-load supply current of ? 25mA and a load current of ?100mA. The output voltage drop is minimal at ?2V@Iload=100mA, and the sensors can withstand a maximum ripple content of ?10%.
LED indicators provide clear status updates, with a yellow light indicating Lon or output status Lo/Do. The sensors are designed to handle interference from external light sources, with a tolerance of 5000lux for incandescent lamps and 10000lux for sunlight. Constructed with a nickel-plated brass housing and a PMMA active head, these sensors are robust and reliable, with a tightening torque of 25Nm.
The sensors are supplied with M18 x 1 nuts and a screwdriver for easy installation. They are CE and cULus listed, ensuring compliance with international standards, and are EMC compatible with EN 60947-5-2. Withstanding shocks and vibrations as per IEC standards, these sensors are built to last in demanding environments. The operating temperature range is -25°C to +70°C, making them suitable for a wide range of applications without the risk of freezing.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
