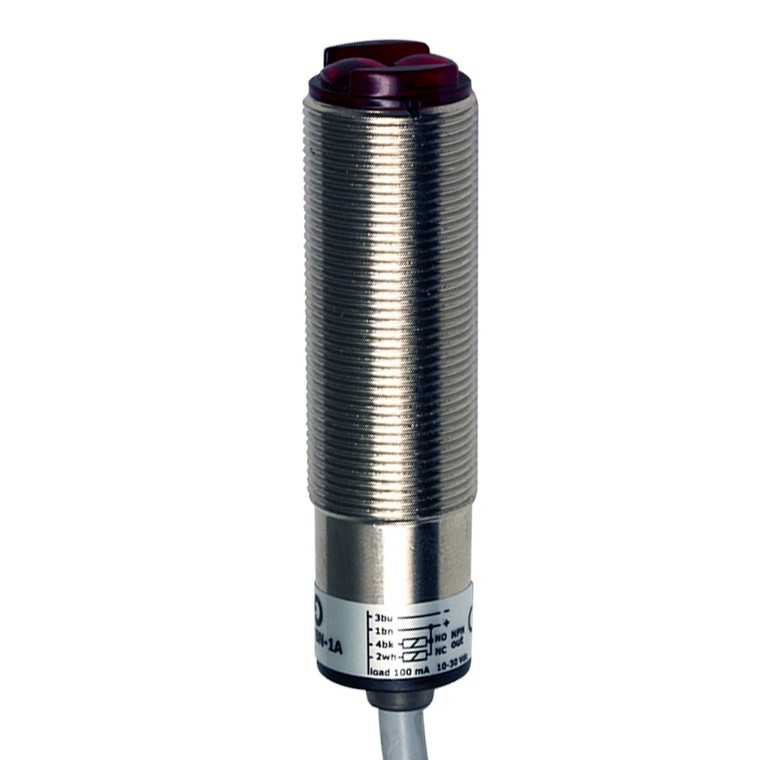

The Datasensing FARW/BP-1A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial BGS with an adjustable sensing range of 35-300 mm, these sensors are equipped with a PNP NO+NC output and a durable 2m metal cable. The M18 sensors operate on a 10...30 Vdc power supply and offer both axial and radial optics with a flat surface for versatile applications. They are ideal for detecting transparent objects with retro-reflective models and red emission, all while maintaining an IP67 protection degree for robust performance in various environments.
These sensors boast a nominal sensing distance of 350mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. Sensitivity can be finely tuned using a trimmer, and the minimum sensing distance is 35mm, ensuring precise background suppression. The sensors are designed with a switching frequency of 1Khz and a rapid response time of 500µs, making them suitable for high-speed applications.
Constructed with a nickel-plated brass housing and a PMMA active head, the sensors are built to withstand harsh conditions, with an operating temperature range of -25°C to +70°C. They are protected against short circuits, overvoltage, and reverse polarity, ensuring long-lasting reliability. The sensors are CE and cULus approved, with EMC compatibility per EN 60947-5-2 standards, and are resistant to shocks and vibrations as per IEC standards.
With a compact M18 x 1/L=65.5mm design and a weight of 130g, these sensors are easy to install and integrate into existing systems. Supplied with M18 x 1 nuts and a screwdriver, they offer a complete solution for your sensing needs.
- Nominal sensing distance:
- 350mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 35mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Pin point Red(660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
