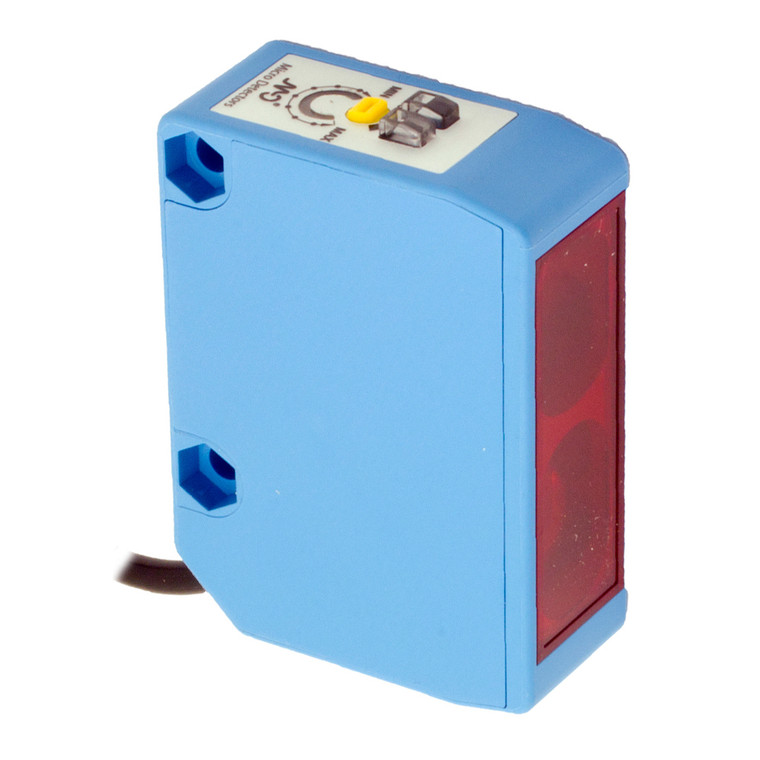

Datasensing FGRHD/0P-0A Sensors

The Datasensing FGRHD/0P-0A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a compact cubic design, these sensors offer a nominal sensing distance of 50 meters with a sensitivity adjustment via a potentiometer with a position indicator. The emitter and receiver operate on a PNP L/D selectable output type, ensuring flexibility in various applications. With a switching frequency of 1kHz and a rapid response time of 500µs, these sensors are ideal for high-speed operations. The sensors are equipped with dual multifunction LED indicators for power and status output, providing clear visual feedback. They are built to withstand harsh environments, with a robust ABS housing and IP67 mechanical protection, ensuring durability and resistance to shocks and vibrations. The sensors are protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. Operating within a voltage range of 10 to 30VDC, the sensors have a low no-load supply current and are capable of handling load currents up to 100mA. The cable output or revolving connector options, along with selectable LO/DO output status, offer versatile installation possibilities. The sensors are also equipped with background suppression models and reflex polarized sensitivity adjustment for enhanced performance. With CE and UR approvals and EMC compatibility with EN 60947-5-2 standards, the Datasensing FGRHD/0P-0A Sensors are a reliable choice for industrial applications requiring precise and dependable photoelectric sensing solutions.
