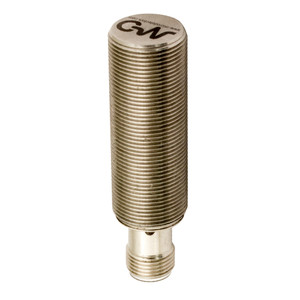

SENSORE INDUTT. M18 METAL FACE
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0 / aluminium: 0,13 / brass: 0,27 / stainless steel: 0,70
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 short flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 100Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 55g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- stainless steel AISI316L
- Tightening torque:
- 25Nm
- Material:
- AISI316L Stainless Steel
- 0,25mm:
- 0,50mm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- IK05:
- IK08
- 80bar:
- 80bar
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP68 / IP69K
