Datasensing MST/00-1H Sensors

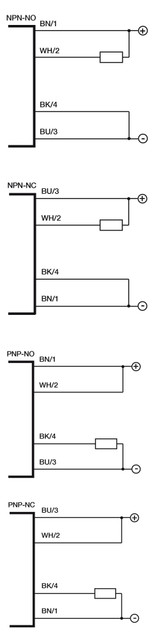

The Datasensing MST/00-1H Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 12mm (with STF-12) and 25mm (with SFT-25). Featuring a blackground suppression function, these sensors ensure reliable performance with a thermal drift of Sr ?10% and a repeat accuracy of 5%. The sensors operate on a voltage range of 10…30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. They are equipped with selectable output types (NPN/PNP and NO/NC) and a switching frequency of 1Khz, ensuring quick response times of 500µs. Constructed with a durable nickel-plated brass housing and a PMMA active head, the sensors are designed to withstand harsh environments, offering mechanical protection rated at IP67. The M18 diameter sensors come with an M12 plug connection and are supplied with M18 x 1 nuts for easy installation. They are capable of operating in temperatures ranging from -25°C to +70°C without freezing, and are protected against short circuits, overvoltage, and impulsive overvoltage. The sensors feature a red LED emission at 660nm and are resistant to external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight. With CE and cURus approvals, and EMC compatibility with EN 60947-5-2, these sensors are built to meet high standards of safety and reliability. The yellow LED indicators provide clear status output, and the sensors are designed to handle shocks and vibrations as per IEC standards. Ideal for applications requiring precise and reliable sensing, the Datasensing MST/00-1H Sensors are a robust choice for industrial environments.
