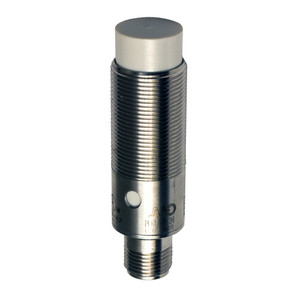

Datasensing PFK1/BP-1H26 Sensors
Datasensing
$201.32
The Datasensing PFK1/BP-1H26 Sensors are designed for precision and reliability in demanding environments. Encased in robust AISI 316L stainless steel, these inductive sensors offer a high degree of protection with IP67, IP68, and IP69K ratings, ensuring durability against dust, water, and high-pressure cleaning. They feature a nominal sensing distance of 5mm and an operating distance of 0
4.05mm, making them ideal for proximity detection applications. The sensors are equipped with PNP output functions, including both NO and NC configurations, and support a switching frequency of 1.5kHz.
With a wide operating voltage range of 10...30Vdc and a low no-load supply current of ? 15mA, these sensors are energy-efficient. They are built to withstand extreme temperatures from -25°C to +110°C, making them suitable for various industrial settings. The sensors also include comprehensive protection features such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance and longevity.
The M18 standard flush mount design, along with a PPS active head material, provides ease of installation and robust performance. The sensors come with an M12 plug connection and are supplied with two M18x1 nuts for secure mounting. Certified with CE, cULus, ECOLAB, and DIVERSY approvals, and compliant with EMC compatibility standards IEC 60947-5-2, these sensors are a dependable choice for industrial automation and control systems.
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,35 / brass: 0,40 / stainless steel: 0,70
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 1,5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- No
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 55g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 50Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB DIVERSY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
