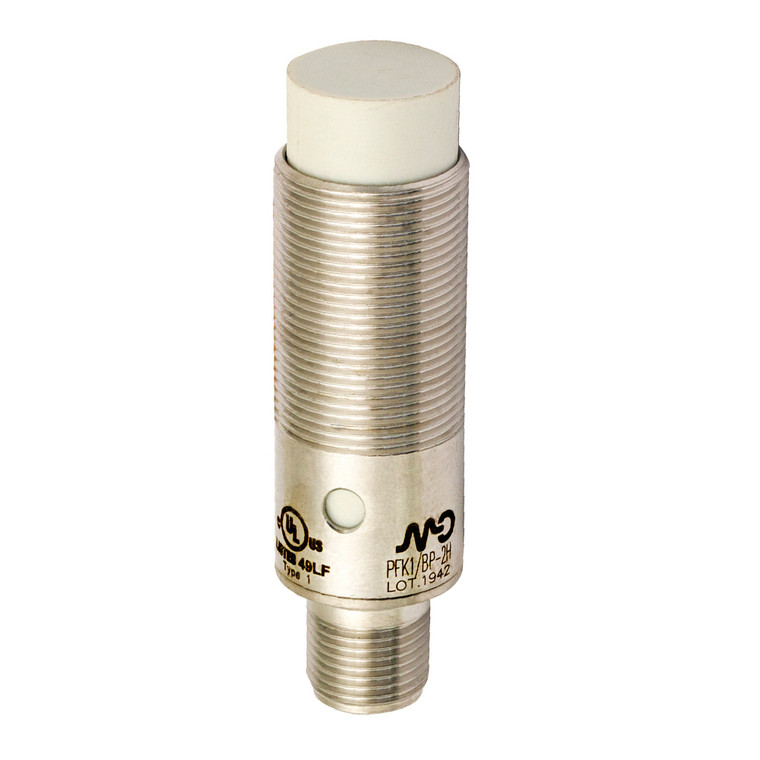

Datasensing PFK1/BP-4HV5 Sensors
Datasensing
$96.35
The Datasensing PFK1/BP-4HV5 Inductive Sensor is designed for precision and reliability in industrial applications. Featuring an unshielded D18 design, this sensor offers a nominal sensing distance of 12mm and operates effectively within a range of 0 to 9.7mm. It is optimized for a standard target size of 36x36mm FE360, with correction factors for various materials such as copper (0.30), aluminium (0.38), brass (0.42), and stainless steel (0.65). The sensor maintains a thermal drift of Sr under 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C. With a hysteresis range of 1 to 20%, it is suitable for proximity functions with a PNP output type and NO + NC output function. The sensor supports a switching frequency of 1.5kHz and operates on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 15mA and a load current of ? 200mA. It features a low leakage current of ? 10?A and an output voltage drop of ? 2V at 200mA, with a maximum ripple content of ? 10%. The yellow LED indicator provides a clear output state, and the sensor is equipped with short-circuit, reverse polarity, impulsive overvoltage, and inductive load protections. Constructed with a robust AISI316L stainless steel housing and an active head made of PPS, it is designed for unshielded mounting with a tightening torque of 50Nm. The sensor is CE, cULus, ECOLAB, and DIVERSY approved, ensuring compliance with EMC compatibility standards IEC 60947-5-2. It withstands shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M18x1 nuts, the sensor measures M18 x 1 with a length of 63.1mm and operates within a temperature range of -40°C to +80°C, with short exposure tolerance up to 100°C during cleaning processes. It offers IP67 mechanical protection, making it ideal for demanding environments.
- Nominal sensing distance:
- 12mm
- Operanting distance:
- 0 9,7mm
- Standard target:
- 36x36mm FE360
- Correction Factor:
- copper: 0,30 / aluminium: 0,38 / brass: 0,42 / stainless steel: 0,65
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 1,5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 55g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 50Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB DIVERSY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 63,1mm
- Operating Temperature:
- -40°C +80°C (up to 100°C for short exposure during cleaning process)
- Mechanical Protection:
- IP67
