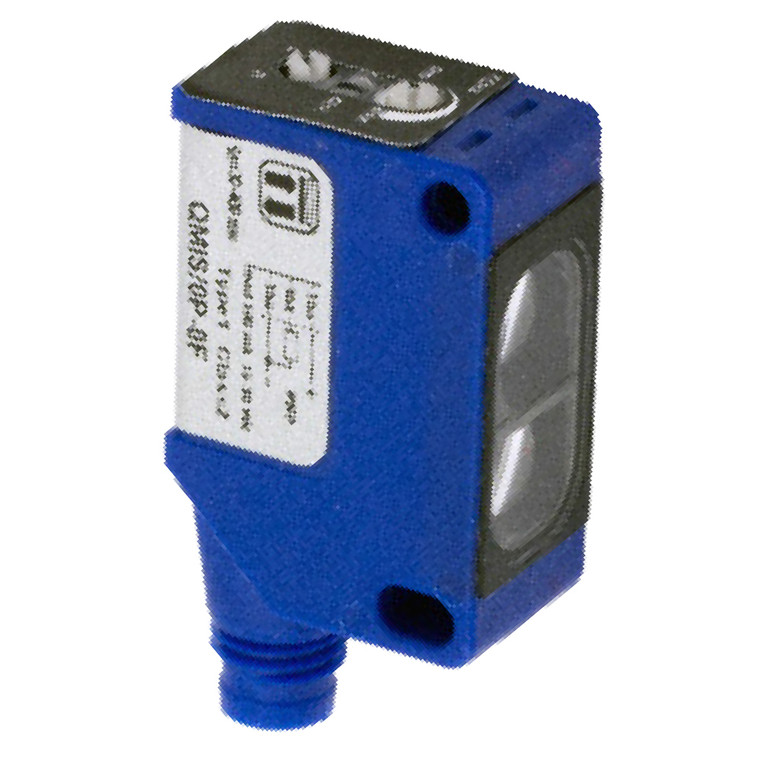

Datasensing QMRL/0N-0F Sensors

The Datasensing QMRL/0N-0F Sensors are advanced cubic miniaturized photoelectric sensors designed for high-performance applications. With a long sensing distance and a 2 kHz switching frequency, these sensors offer reliable background suppression with mechanical adjustment. They are available in a wide range of models, including diffuse reflection with short, medium, and long sensing distances, polarized, reflective for transparent objects, through-beam, and background suppression options. These sensors come with either a cable and M8 plug exit or an M8-M12 pig-tail, and feature selectable LO/DO output states. They are completely filled with resin, except for the background suppression models, providing complete protection against electrical damages. The nominal sensing distance is 4m, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. Sensitivity can be adjusted using a trimmer, and the minimum sensing distance (blind zone) is 0.4m. The sensors operate on a voltage range of 10…30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. They feature a low output voltage drop of ?2V@Iload=100mA and a maximum ripple content of ?10%. LED indicators provide status output (yellow) and stability (green) information. Built with robust materials, the housing is made of PA66, and the active head is crafted from PMMA. The sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a storage temperature range of -30°C to +80°C. They are IP67 rated for mechanical protection and are approved by CE cULus, ensuring compliance with EMC compatibility standards EN 60947-5-2. Additionally, they are resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Ideal for applications requiring precise and reliable sensing, the Datasensing QMRL/0N-0F Sensors are a versatile and durable choice for various industrial environments.
