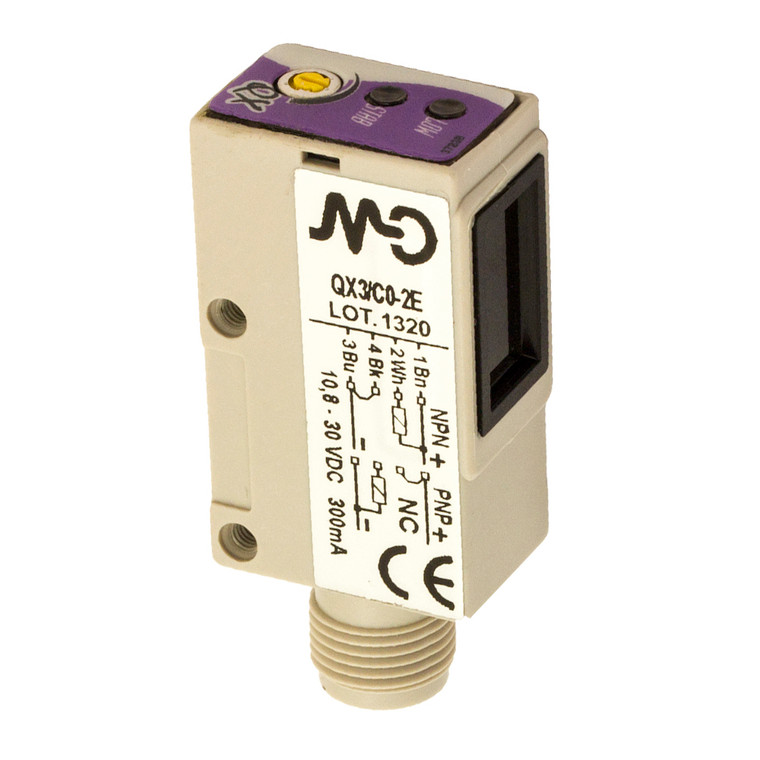

Datasensing QX3/C0-2E Sensors
Datasensing
$171.72
The Datasensing QX3/C0-2E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a diffuse reflection function with a nominal sensing distance of 300mm, these sensors are equipped with axial and right angle optics for versatile application. The sensors boast a fast response time of 0.75-0.5 ms and a high switching frequency of 750Hz, ensuring quick and accurate detection. With NPN-PNP selectable output and a high output current capacity of over 300mA, they offer flexibility and robust performance.
The sensors are housed in a durable ABS material with an IP65 degree of protection, making them suitable for various industrial environments. They are equipped with two LED indicators for threshold and signal margin, providing clear visual feedback. The visible red light in retro-reflective, polarized, and through-beam models enhances long-distance capability and precision beam accuracy.
Additional features include a sensitivity adjustment trimmer, short-circuit and reverse polarity protection, and compatibility with a wide operating voltage range of 10 to 30VDC. The sensors are designed to withstand shocks and vibrations as per IEC standards and are EMC compatible with EN 60947-5-2. Supplied with ST70 mounting brackets and screws, the Datasensing QX3/C0-2E Sensors are ready for seamless integration into your system.
- Nominal sensing distance:
- 300mm
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Optic position:
- Radial 90°
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x50
- Weight:
- 70g
- Connections:
- M12 plug
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
