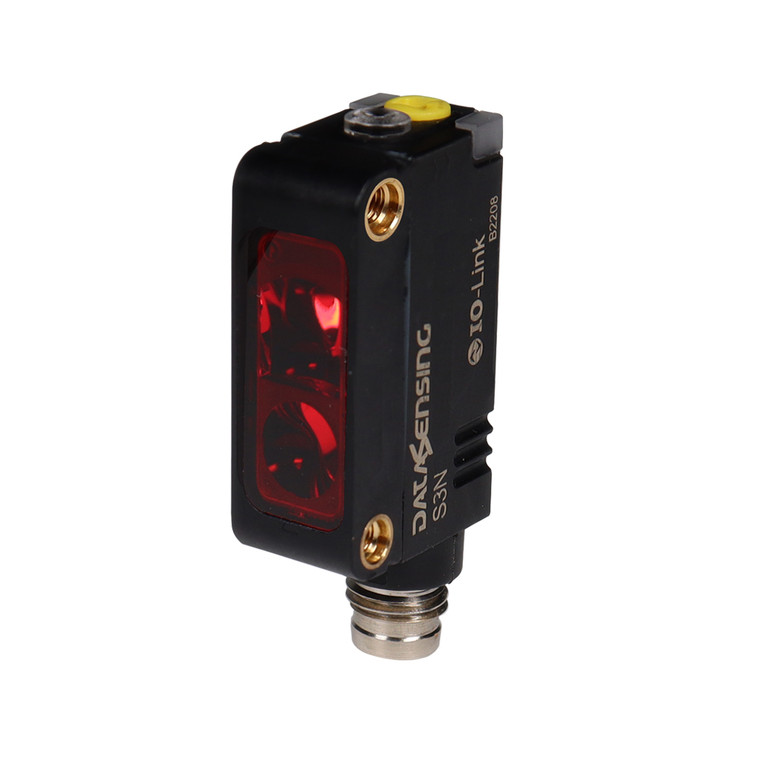

Datasensing Red Laser emission Background Suppressor Push Button Teach in IO-Link Connector M8 4P
Datasensing
$209.03
The Datasensing Red Laser Emission Background Suppressor is a cutting-edge sensor designed for precision and reliability in various industrial applications. Featuring a visible and bright red laser emission, this device excels in detecting shiny and clear objects with its advanced background suppression functions. It offers a nominal sensing distance of 130mm and a minimum sensing distance of just 1mm, ensuring accurate performance even in challenging environments.
Equipped with a push button TEACH-IN sensitivity adjustment, the sensor allows for easy setup and customization. The device supports IO-Link connectivity, providing seamless integration with modern automation systems and enabling extended smart tasks. Its rugged IP67-rated plastic miniature case ensures durability, while the M8 4-pin connector facilitates secure and efficient connections.
The sensor's performance is further enhanced by its high switching frequency of 1.5kHz and a rapid response time of 333µs. It operates within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 35mA. The device is equipped with multiple LED indicators, including a yellow output LED, a green power-on LED, and a blue IO-Link activity LED, providing clear visual feedback during operation.
Designed with safety and reliability in mind, the sensor includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Its robust construction features a plastic polymer fiber glass reinforced housing and a PMMA active head material, ensuring long-lasting performance in demanding conditions. With approvals from CE, cULus, and CDRH, this sensor meets high standards of quality and safety, making it an ideal choice for industrial automation applications.
- Nominal sensing distance:
- 130mm
- Sensitivity adjustment:
- Push Button TEACH-IN
- Minimum sensing distance (blind zone):
- 1mm
- Function Principle:
- Blackground suppression
- Notes:
- (class 1 LASER) white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Functions:
- Background suppression
- Output type:
- IO-Link
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 400 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED all models, green Power ON LED and user interface interaction during teach on, blu LED IO-Link Activity
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1 IO-Link
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
