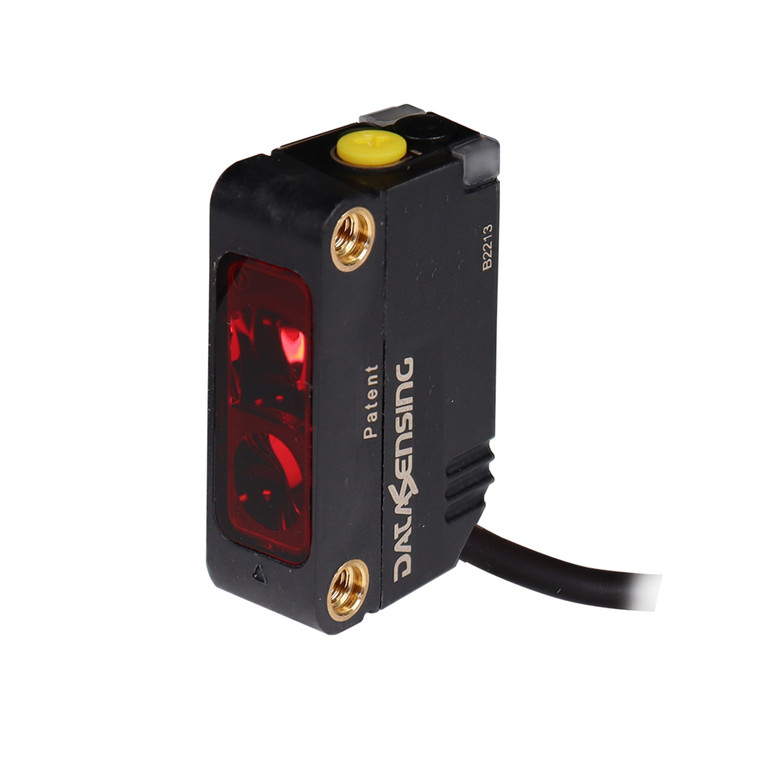

Datasensing Red LED emission Diffused long distance 1m single trimmer Light Output PNP Cable
Datasensing
$63.11
The Datasensing Red LED Emission Diffused Long Distance 1m Single Trimmer Light Output PNP Cable is a versatile and reliable sensor designed for precise detection tasks. Featuring a bright red LED emission, this model excels in detecting shiny and clear objects with its advanced background suppression functions. It offers a diffuse proximity sensing range of up to 100 cm and background suppression up to 800 mm, making it ideal for various applications. The sensor is housed in a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts for secure mounting.
Equipped with state-of-the-art IO-Link connectivity, it supports extended Smart Tasks for enhanced performance. The sensor operates on a 10
30VDC voltage range, with a nominal sensing distance of 1m and a sensitivity adjustment via a 1-turn trimmer. It features a PNP output type with a switching frequency of 1kHz and a response time of 500µs, ensuring quick and accurate detection.
The device is designed with robust protection features, including short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. It is built to withstand harsh environments, with a storage temperature range of -25°C to +70°C and an operating temperature range of -25°C to +55°C. The sensor's housing is made from plastic polymer fiber glass reinforced material, ensuring durability and longevity.
With its compact dimensions of 11x31x19 mm and a 2m cable connection, the Datasensing Red LED Emission Diffused Long Distance 1m Single Trimmer Light Output PNP Cable is an excellent choice for applications requiring precise and reliable object detection.
- Nominal sensing distance:
- 1m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Diffuse beam
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Functions:
- Diffuse beam
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
