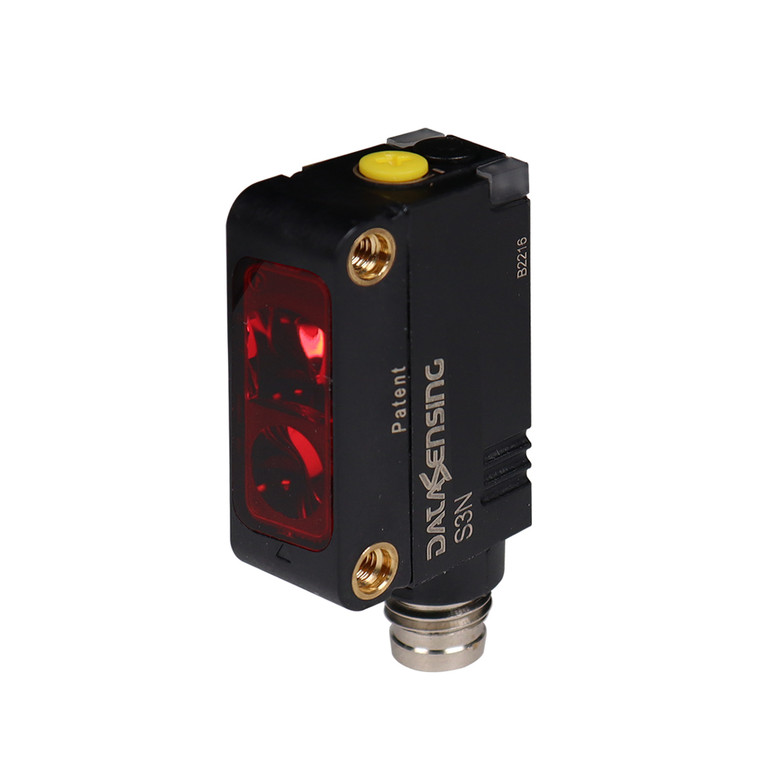

Datasensing Red LED emission Diffused long distance 1m single trimmer Light Output PNP Connector M8 4P

The Datasensing Red LED Emission Diffused Long Distance Sensor is designed for precision and reliability in various industrial applications. With a nominal sensing distance of 1 meter and a sensitivity adjustment via a single turn trimmer, this sensor ensures accurate detection of objects, even those that are shiny or clear. It features a diffuse beam function with a radial optic position at 90°, providing a minimum sensing distance with no blind zone. The sensor operates on a voltage range of 10 to 30 VDC, with a high switching frequency of 1kHz and a rapid response time of 500µs, making it suitable for fast-paced environments. Equipped with a PNP output type and a robust IP67-rated plastic miniature case, this sensor is built to withstand harsh conditions. It includes advanced features such as short-circuit and reverse polarity protection, impulsive overvoltage protection, and EMC compatibility according to EN 60947-5-2 standards. The sensor's housing is made from a durable plastic polymer fiber glass reinforced material, ensuring longevity and resistance to shocks and vibrations. The device is easy to install with its M8 4-pin connector and offers state-of-the-art IO-Link connectivity for extended smart tasks. LED indicators provide clear status updates with a yellow output LED and a green stability LED. This sensor is ideal for applications requiring precise background suppression up to 800 mm and polarized RRX detection up to 7 meters with red LED emission. Its compact dimensions of 11x31x19 mm make it a versatile choice for space-constrained setups.
