Datasensing Red LED emission Retro Reflex polarized single trimmer Dark Output NPN Cable

The Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Dark Output NPN Cable is a cutting-edge sensor designed for precision and reliability. Featuring a bright red LED emission, this model excels in detecting shiny and clear objects with its advanced polarized retroreflective function. It offers a nominal sensing distance of 7 meters and a minimum sensing distance of 0.05 meters, ensuring accurate performance in various applications. Equipped with a 1-turn trimmer for sensitivity adjustment, this sensor provides flexibility and ease of use. The rugged IP67 plastic miniature case, reinforced with fiberglass, ensures durability and protection against harsh environments. The sensor's state-of-the-art IO-Link connectivity allows for extended smart tasks, enhancing its functionality. With a switching frequency of 1kHz and a response time of 500µs, this sensor delivers fast and reliable operation. It operates within a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The sensor is equipped with yellow output and green stability LED indicators for easy status monitoring. Designed with safety in mind, it includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The sensor is EMC compatible and meets the EN 60947-5-2 standard for interference to external light. Its compact cubic design, with dimensions of 11x31x19 mm, makes it suitable for space-constrained installations. Ideal for applications requiring precise object detection and background suppression, the Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Dark Output NPN Cable is a reliable choice for industrial automation and control systems.

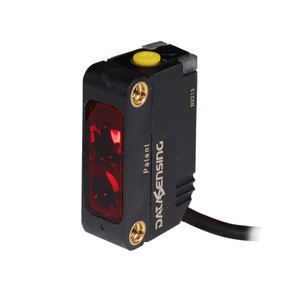

Elevate your automation projects with the Datasensing S3N-PR-2-B01-ND-RRX Polarized Retroreflective Photoelectric Sensor (SKU: 95B010262). Designed for maximum reliability in harsh industrial environments, this compact, cubic sensor delivers precise object detection at distances up to 7 meters using an R5 reflector. Its advanced polarized retroreflective technology and bright 635 nm red LED ensure stable sensing, even in challenging conditions where ambient light or dust may be present.

Key Features and Benefits

• Long-range detection: Accurately sense targets from 0.05 m up to 7 m, ideal for conveyor, packaging, or bottling lines.

• Rugged and compact: Miniature 11x31x19 mm housing built from fiber-glass reinforced plastic provides IP67 protection, resisting water, dust, and vibrations.

• Precision tuning: 1-turn sensitivity trimmer and a bright yellow OUTPUT LED plus a green STABILITY LED simplify setup and monitoring.

• Safe, reliable switching: NPN Dark-on output with advanced short-circuit, reverse polarity, and overvoltage protection ensures seamless integration.

• Optimized performance: 1 kHz switching frequency, 500 µs response time, and high immunity to external light interference per EN 60947-5-2.

Technical Specifications

• Function Principle: Polarized Retroreflective

• Nominal Sensing Distance: 7 m (with R5 reflector)

• Minimum Sensing Distance (Blind Zone): 0.05 m

• Output Type: NPN, Dark-on (Don)

• Operating Voltage: 10–30 VDC, ≤35 mA no-load current, ≤100 mA load current

• Electrical Protections: Short-circuit, reverse polarity, impulsive overvoltage

• Housing/Active Head: Fiber-glass reinforced plastic, PMMA optic, cubic shape

• Connection: 2-meter cable

• Operating Temperature: –25°C to +55°C

• Mechanical Protection: IP67

• Certifications: CE, cULus

Applications

Perfect for automated material handling, robotic assembly, high-speed packaging detection, and more—wherever dependable object presence or absence sensing is required.

Upgrade your sensing technology with the Datasensing S3N-PR-2-B01-ND-RRX and experience robust performance, longevity, and installation flexibility on your production floor.
