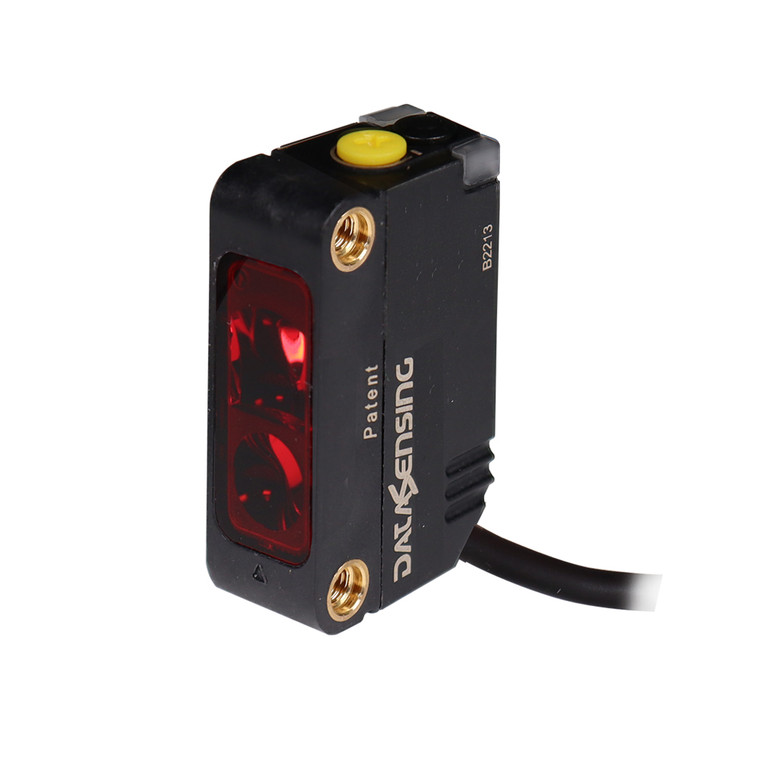

Datasensing Red LED emission Retro Reflex polarized single trimmer Dark Output PNP Cable
Datasensing
$60.90
The Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Dark Output PNP Cable is a cutting-edge sensor designed for precision and reliability in various industrial applications. Featuring a visible and bright red LED emission, this sensor excels in detecting shiny and clear objects with its advanced polarized retroreflective function. It offers a nominal sensing distance of 7 meters and a minimum sensing distance of 0.05 meters, ensuring accurate performance even in challenging environments.
Equipped with a single turn trimmer for sensitivity adjustment, the sensor provides flexibility and ease of use. Its robust design includes a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts, ensuring durability and stability. The sensor's state-of-the-art IO-Link connectivity allows for extended smart tasks, enhancing its functionality and integration capabilities.
With a switching frequency of 1kHz and a response time of 500µs, the sensor delivers fast and reliable operation. It operates within a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The sensor is equipped with yellow output and green stability LED indicators, providing clear visual feedback.
Designed to withstand harsh conditions, the sensor offers short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Its housing is made from plastic polymer fiber glass reinforced material, with an active head material of PMMA, ensuring long-lasting performance. The sensor is compatible with a 2m cable connection and meets CE cULus approvals, EMC compatibility, and shock and vibration standards.
Ideal for applications requiring precise object detection and background suppression, the Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Dark Output PNP Cable is a reliable choice for enhancing operational efficiency and accuracy.
- Nominal sensing distance:
- 7m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0,05m
- Function Principle:
- Polarized retroreflective
- Notes:
- On R5 reflector
- Optic position:
- Radial 90°
- Functions:
- Polarized retroreflective
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
