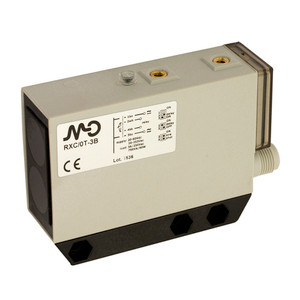

Datasensing RXS/0T-3B Sensors
Datasensing
$196.80
The Datasensing RXS/0T-3B Sensors are designed for high-performance photoelectric sensing with versatile installation options. These sensors offer a range of models including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, making them suitable for various applications. With a nominal sensing distance of 0.3m and a minimum sensing distance of 0.05m, they provide precise detection capabilities. The sensors feature a relay output or multifunctional DECOUT® with a timer function for delay on, delay off, and one-shot operations, along with a trimmer for sensitivity adjustment.
The RXS/0T-3B Sensors are equipped with a switch to reduce emission for fine detection in through-beam types and an LED alignment indicator with 360° visibility. The M12 standard plug cable exit and axial and right-angle brackets ensure easy installation. These sensors operate on a wide voltage range of 20...60VDC /20...253VAC/50-60Hz and have a load current capacity of 3A-250Vac/3A-30Vdc (750VA/90W). They are designed to withstand harsh environments with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP65.
Constructed with a durable PC housing and PMMA active head material, the sensors are lightweight at 90g and compact with dimensions of 26x86.6x61mm. They are CE approved and EMC compatible with EN 60947-5-2 standards, ensuring reliable performance. The sensors also include reverse polarity and impulsive overvoltage protection, as well as resistance to shocks and vibrations as per IEC standards. Supplied with an ST81 mounting bracket and screws, the Datasensing RXS/0T-3B Sensors are an ideal choice for precise and reliable photoelectric sensing needs.
- Nominal sensing distance:
- 0,3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,05m
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 200 x 200mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 30mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 90g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST81 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
