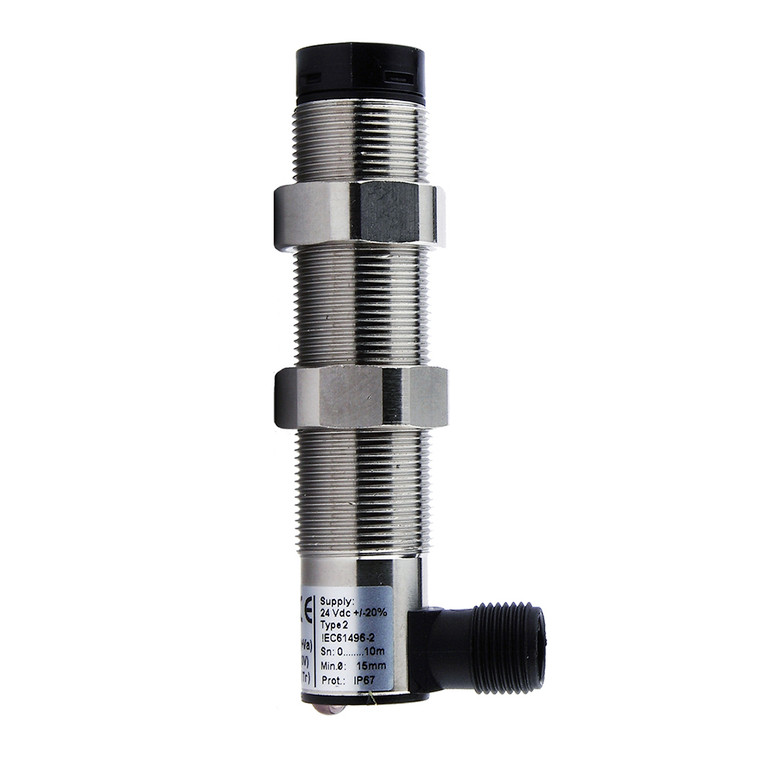

Datasensing SH2/E-1KIC Sensors

Datasensing
SKU:
SH2/E-1KIC
$116.44
Condition:
New
Current Stock:
The Datasensing SH2/E-1KIC Sensors are advanced safety sensors designed for reliable performance in industrial environments. Featuring a robust M18 metal housing, these sensors offer a nominal sensing distance of 10 meters with an axial optic configuration. They are equipped with an M12 90° axial connection, ensuring easy integration into existing systems. The sensors operate at a frequency of 123 kHz and are compliant with IEC61131-2 standards, making them adaptable with any safety module. These Type 2 safety photocell emitters are designed to be used with external safety control units that have an automatic optics test function, excluding the SBCR03 control unit. They are EN50100 Category 2 and Category 4 compliant, providing a high level of safety assurance. The sensors feature LED indicators for easy status monitoring, with a yellow LED indicating power and a red LED for emission. Constructed with a durable PBT housing and glass active head material, the sensors are built to withstand harsh conditions, offering an IP67 degree of protection. They operate efficiently within a temperature range of -20°C to +55°C and can be stored in temperatures as low as -40°C. With a no-load supply current of ? 25mA and a maximum ripple content of ? 5 Vpp, these sensors ensure energy-efficient operation. The Datasensing SH2/E-1KIC Sensors are CE and TÜV approved, with a mechanical protection rating of IP67, making them suitable for use in environments with high humidity levels ranging from 15% to 95%. They are designed to endure shocks and vibrations, adhering to IEC600068-2-29 and 60068-2-6 standards. Supplied with two nuts for secure installation, these sensors are an ideal choice for creating a safety system compliant with EN ISO 13849 standards.
Nominal sensing distance:
10m (ExG=4)
Thermal drift of Sr:
? 10%
Resolution:
Single-beam
controlled height:
Single-beam
Effective Aperture Angle:
? ±5°
Effective Aperture Angle:
Typical ±1,8°
Function Principle:
Emitter
Notes:
not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
Description:
M18 Type 2 Safety Photocell Emitter
Type:
Type 2 safety photocell
SIL:
1
SILCL:
1
PL:
c
PFHd:
1,00E-06
MTTFd:
20 years
Operating Voltage:
10 … 30 Vdc
No-Load supply current:
? 25mA
Max ripple content:
? 5 Vpp
LED indicators:
Yellow (power)
Emission:
Red
Test levels:
<5V emission inactive >15V emission active
Housing Material:
PBT
Connections:
M12 plug
Active Head Material:
Glass
Operating temperature:
-20°C … +55°C
Storage temperature:
-40°C … +75°C
Approvals:
CE, TÜV
Shocks and vibrations:
10g - 16ms (according to IEC600068-2-29) 10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
Degree of protection:
IP67
Supplied Accessories:
2 x nuts
Operating Temperature:
-20…+55°C (Without freeze)
Mechanical Protection:
IP67
