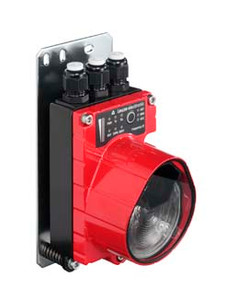

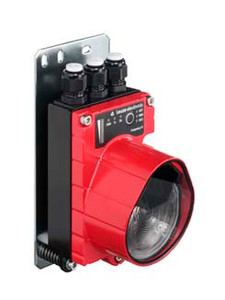

Leuze DDLS 200/120.2-40 Optical data transmission
Leuze
$7,777.00
The Leuze DDLS 200/120.2-40 is an optical data transmission system that enables contact-free, bidirectional communication over distances up to 120 meters using infrared technology. Operating at 2 Mbit/s, it supports Rockwell Automation DH+ and Remote I/O (RIO) protocols, making it suitable for integrating transfer cars and mobile equipment into industrial control networks without physical cable connections. The device operates over a 1830 V DC supply, consumes approximately 200 mA in standard mode (800 mA with integral heating), and offers ±0.5° beam spread for precise optical alignment. Housed in aluminum diecast with glass optics and rated IP 65, the DDLS 200/120.2-40 is designed for harsh industrial environments including automated warehouses, conveyor systems, and applications spanning 30 to +50°C; installation requires paired transmitter/receiver units (model .1 and .2) with specified lateral separation to prevent frequency interference.
Documentation
- [Technical Datasheet](https://www.leuze.com/en-us/ddls-200-120.2-40/50038301)
- [Product Family Overview & Specifications](https://www.leuze.com/en-us/products/optical-data-transmission)
- [Installation & Operating Guide](https://www.sensorgruppen.se/wp-content/uploads/2017/01/TD_DDLS200_en_50036440-5.pdf)
- [Protocol & Interface Reference Manual](https://www.all4sps.com/mediafiles/Sonstiges/DDLS78.5.pdf)
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F2
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Rockwell DH+/RIO
- Transmission speed:
- 57.6 ... 230.4 kBit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 6 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
