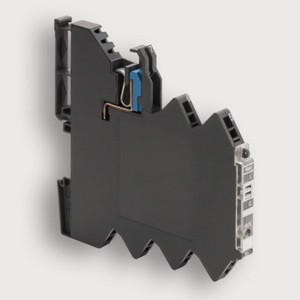

Description
Technical Data
Input
Type of function
1-channel 1 pin switching
Rated voltage UN
DC 12/24 V
Operation voltage range
DC 11??30 V
Rated current IN
DC 5 A
Supply current
DC 40 A over Cu-rails 10 ?? 3 mm
Reverse voltage protection
internal electronics
Connection type input
screwless contact slide
Control input (Set / Reset)
Signal level
DC 12/24 V acc. to EN 61131
OFF
Pulse with falling edge >100 ms, <800 ms
ON
Pulse with falling edge > 1 s
Output
Switching element
MOSFET
Output current
max. DC 5 A
Power output
limited to <100 W
Status display output
- LED green: operating voltage present, no error
- LED red: error in load circuit
Switch-on capacity
4700 ???F
Current range
0.5 A ?? 4 A (can be set via switch in 0.5 A steps)
Characteristic
fast (1), medium (2), slow 1 (3) see 'Characteristic curves'
Current limitation
<5 A
Signal output
Signal level
- DC 24 V: operating voltage on standby, no error,
- DC 0 V: error, output switched off and manual "OFF"
Switching element
Transistor, collector with pull-up resistance
General
Operation temperature range
-25 ???C ?? +50 ???C
Storage temperature range
-40???C??75???C
Dimensions (w ?? h ?? d)
8,1??114,5??116 mm
Housing material
PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting
- DIN rail mountable TS35
- (EN 60715)
Protection class
IP20
Installation position
any
Connection type
- Spring terminal
- 0.25 mm2 ?? 2.5 mm2
Weight
0,12 kg/piece
Approvals
- cULus (E135145)
- GL in preparation
- NEC Class 2 (E490188)
- UL 61010-1
- UL 61010-2-201 (E170585)
Standards
- EN 60950-1
- EN 61131-1, 2
- EN 61000
- EN 60947-4-1
- EN 55022
PU
1 piece
Dimensions
PIN assignment
1: Characteristic fast
2: Characteristic medium
3: Characteristic slow-1
Signal output
