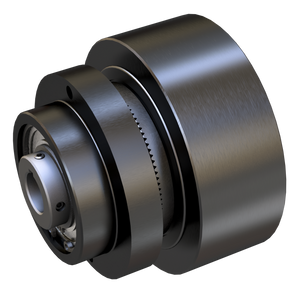

Nexen 909915 Air Engaged Tooth Clutch
NexenAir Engaged Tooth Clutch
5H30P-1*1.000 BORE,PILOT,SPCL
Air Engaged, Spring Released, Pilot Mount, Non-Positioning
Configuration Notes: Due To Large Bore Set Screw Over Keyway Has Very Few Threads, 909917 Adds A Collar To Provide More Threads
Length=3.89 in; Outer Diameter=4.56 in; Pilot Size=2.875 in; Bore Size=1.000 in, Machined Bore with Keyway; Output Bolt Circle=3.437 in; Output Bolt Hole Size=4 0.250-20 in, Holes @ 90°
Product Features=Air Engaged, Spring Released, Pilot Mount, Non-Positioning; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
- Weight:
- 7 lbs
- Min Sprocket Size:
- 35/40T, 40/32T, 50/26T, 60/22T, 80/17T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 91
- Max Speed:
- 3700 RPM
- Drive Inertia:
- 5.14 lbin²
- Shaft Inertia:
- 1.31 lbin²
- Backlash:
- 0.38 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Input Shaft Securement:
- 2, 0.190-24 Set Screws @ 90°
- Max Static Clutch Torque:
- 1850 inlb
- Min Static Clutch Torque:
- 460 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 20 psi
- Air Chamber Volume:
- 0.439 in³
- Inlet Size:
- 0.125-27 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Non-Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Machined Aluminum Air Chamber Black Oxide Pilot
- Output Configuration:
- Pilot
