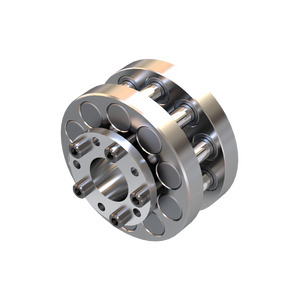

Nexen 966771 Shaft Mount Roller Pinion
NexenShaft Mount Roller Pinion
RPS20P-B025.00MMX1,SPCL
High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination
Length=58.5 mm; Body Length=42.5 mm; Outer Diameter=84.0 mm; Bore Size=25 mm; Distance Per Revolution=200 mm; Meshing Pitch Circle Diameter=63.7 mm
Product Features=High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
- Weight:
- 3.3 lbs
- Max Speed:
- 1500 RPM
- Primary Finish:
- Stainless Steel
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight Keyless Bore With Mechanical Compression Coupling
- Max Dynamic Torque:
- 92.3 Nm
- Max Static Torque:
- 95.5 Nm
- Max Dynamic Torque At Min Life:
- 92.3 Nm
- Max Dynamic Torque For Max Life:
- 52.5 Nm
- Max Acceleration Thrust:
- 2900 N
- Max Average Thrust:
- 1500 N
- Max Static Linear Force:
- 3000 N
- Rotational Inertia:
- 0.00105 kgm²
- Approximate Life:
- 60000000, Contacts Per Roller Or Full Revolutions At Max Life Rated Performance, See Tech Data Sheet For Full Info
- Materials Of Construction:
- Stainless Steel Body Zinc-Nickel Plated Bearing Cups Zinc Plated Fasteners Thin Dense Hard Chrome Plated Steel Rollers
- Max Linear Speed:
- 5 m/s
- Pinion Mounting Style:
- Shaft Mount
- RPS Size:
- 20
- RPS Width:
- B-Width, Only Compatible with B-Width Racks or Gears
- Backlash Rating:
- Zero Backlash
