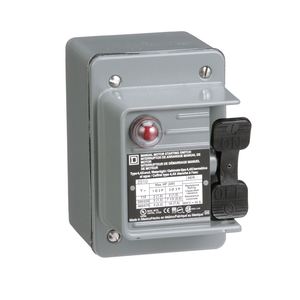

Schneider Electric 2510KW1 Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening

(No reviews yet) Write a Review
SKU:
2510KW1
MPN:
2510KW1
Condition:
New
Country of Origin:
United States
Electrical Connection:
screw clamp terminals
Product Or Component Type:
Single Unit Manual Switch
Depth:
4.25 in
Cable Entry:
0.75 NPT (bottom)
Eu Rohs Directive:
Not compliant
Awg Gauge:
AWG 14...AWG 10 copper
Maximum Horse Power Rating:
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
Poles Description:
2P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
30 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pvc Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC || 230 V DC
Control Type:
toggle
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Local Signaling:
no indicator
Warranty:
18 months
Nema Degree Of Protection:
NEMA 4 die cast zinc alloy standard size
Range Of Product:
K
Phase:
1 phase
Motor Starter Type:
non reversing
$329.87

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. Units are UL Listed, CSA Certified and CE Marked for global applications. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
