Schneider Electric

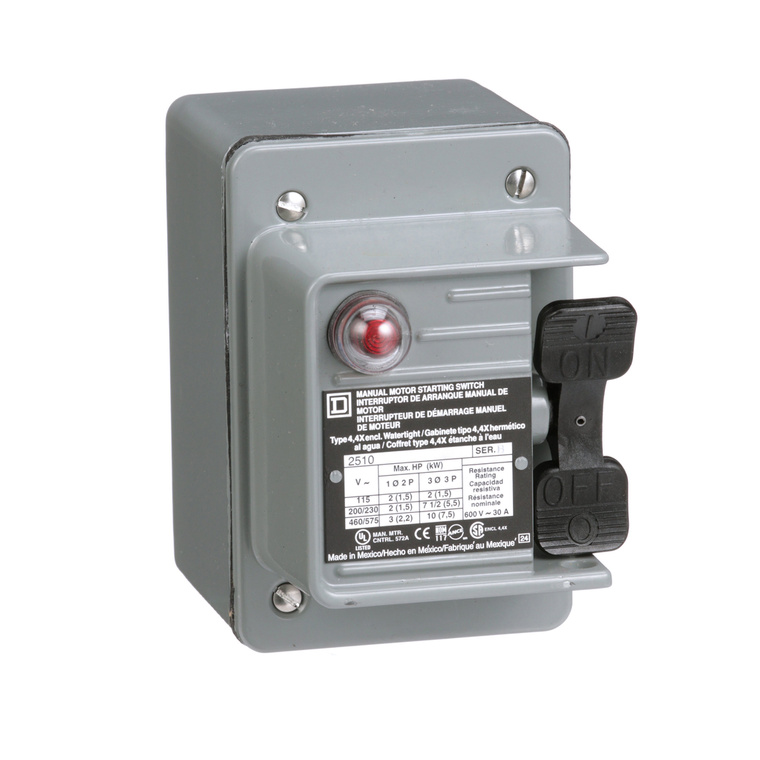

Schneider Electric 2510KW1A Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, one conduit

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 2510KW1A Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, one conduit

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2510KW1A

UPC:

MPN:

2510KW1A

Condition:

New

Electrical Connection:

screw clamp terminals

[Ue] Rated Operational Voltage:

600 V AC || 230 V DC

Poles Description:

2P

Product Or Component Type:

Single Unit Manual Switch

Depth:

4.56 in

Pvc Free:

Yes

Local Signaling:

red indicator, 115 V

Motor Starter Type:

non reversing

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cable Entry:

0.75 NPT (bottom)

Product Certifications:

UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05

Eu Rohs Directive:

Not compliant

Warranty:

18 months

Phase:

1 phase

Control Type:

toggle

Awg Gauge:

AWG 14...AWG 10 copper

Range Of Product:

K

Nema Degree Of Protection:

NEMA 4 die cast zinc alloy standard size

Line Rated Current:

30 A

Country of Origin:

United States

Maximum Horse Power Rating:

2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
