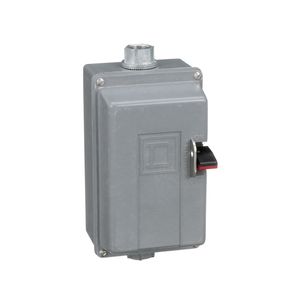

Schneider Electric 2510MCW13 Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole, 10HP at 380/575VAC, 3 phase, no indicator, NEMA 4/4X

Schneider Electric 2510MCW13 Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole, 10HP at 380/575VAC, 3 phase, no indicator, NEMA 4/4X

Schneider Electric
SKU:
2510MCW13
$988.79
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. The proper thermal unit must be selected and ordered separately to provide proper overload protection for the motor. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 4/4X watertight and dusttight enclosure with brushed stainless steel is used to protect this integral horsepower manual starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
Additional Information
Thermal Overload Type:
melting alloy
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Awg Gauge:
AWG 14...AWG 8 copper
Nema Degree Of Protection:
NEMA 4/4X brushed stainless steel
Warranty:
18 months
Motor Starter Type:
non reversing
Range Of Product:
M
Product Or Component Type:
Manual Starter
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV
Pvc Free:
Yes
Maximum Horse Power Rating:
7.5-7.5 hp 200...230 V AC, 3 phase || 10-10 hp 380...575 V AC, 3 phase
Auxiliary Contact Composition:
without
Number Of Thermal Units Required:
3
Mercury Free:
Yes
Local Signaling:
no indicator
Rohs Exemption Information:
Yes
Country of Origin:
Mexico
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
600 V AC
Electrical Connection:
pressure wire clamp
Poles Description:
3P
Control Type:
push-button
Nema Size:
M-1
Depth:
5.76 in
