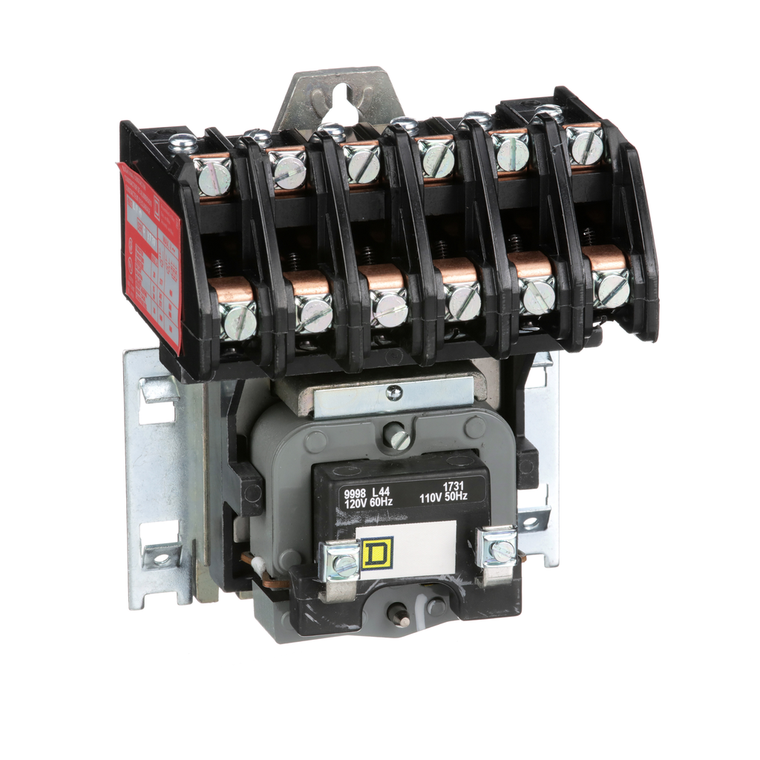

Schneider Electric 8903LO60V02 Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, open style
Schneider Electric
$746.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LO60V02 Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600V, 110/120VAC 50/60Hz coil, open style
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 4.25 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Product Or Component Type:
- Electrically Held Lighting Contactor
- Halogen Content Performance:
- Halogen free plastic parts product
- Country of Origin:
- Mexico
- Environmental Disclosure:
- ENVPEP1407018EN
- Sustainable Offer Status:
- Green Premium product
- Hold-In Power Consumption In Va:
- 30-30 VA 60 Hz || 30-30 VA 50 Hz
- Electrical Connection:
- screw-clamp terminals
- Control Circuit:
- separate control circuit
- Nema Degree Of Protection:
- not rated (open device)
- Inrush Power In Va:
- 150-150 VA 60 Hz || 140-140 VA 50 Hz
- Pvc Free:
- Yes
- Mercury Free:
- Yes
- Local Signaling:
- no indicator
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Product Certifications:
- UL Listed || CSA
- Warranty:
- 18 months
- Range Of Product:
- 8903L
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile:
- N/A
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Depth:
- 79 mm
- Control Type:
- no control units
- Eu Rohs Directive:
- Compliant
- Poles Description:
- 6P 6 NO
