Schneider Electric 8903LXG80V02 Contactor, Type L, multipole lighting, mechanically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1
Schneider Electric
$1,287.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LXG80V02 Contactor, Type L, multipole lighting, mechanically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

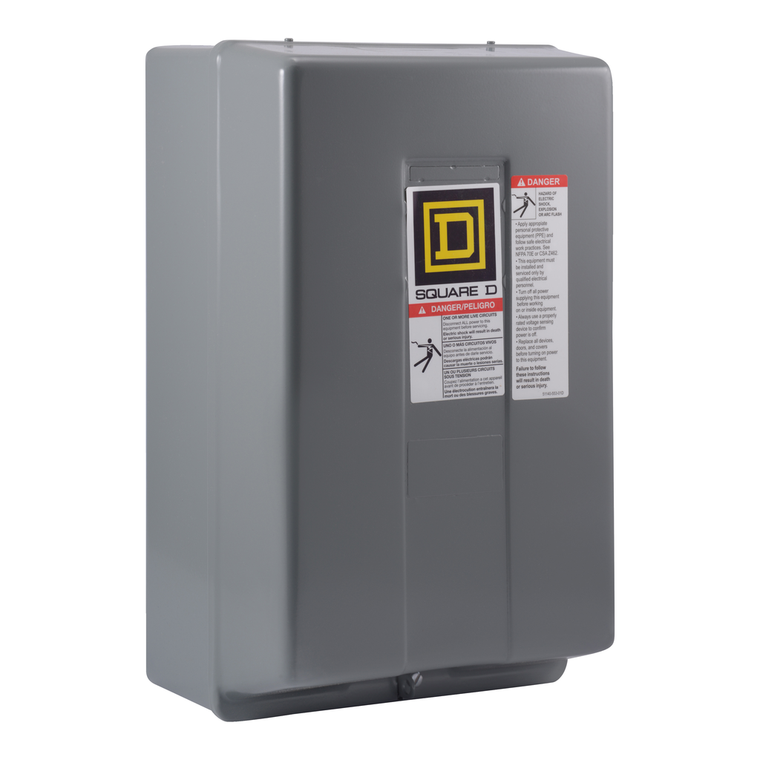

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 8 pole device has 8 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coils and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Additional Included Device:
- none
- Control Circuit:
- separate control circuit
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Inrush Power In Va:
- 180-180 VA 60 Hz || 170-170 VA 50 Hz || 25-25 VA 50/60 Hz
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Control Type:
- no control units
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1407018EN
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- Mechanically Held Lighting Contactor
- Range Of Product:
- 8903LX
- Depth:
- 153 mm
- Poles Description:
- 8P 8 NO
- Sustainable Offer Status:
- Green Premium product
- Halogen Content Performance:
- Halogen free plastic parts product
- Electrical Connection:
- screw-clamp terminals
- Local Signaling:
- no indicator
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant
- Circularity Profile:
- N/A
- Pvc Free:
- Yes
- Nema Degree Of Protection:
- NEMA 1 painted sheet steel surface
- Product Certifications:
- UL Listed || CSA
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Country of Origin:
- Mexico
