Schneider Electric

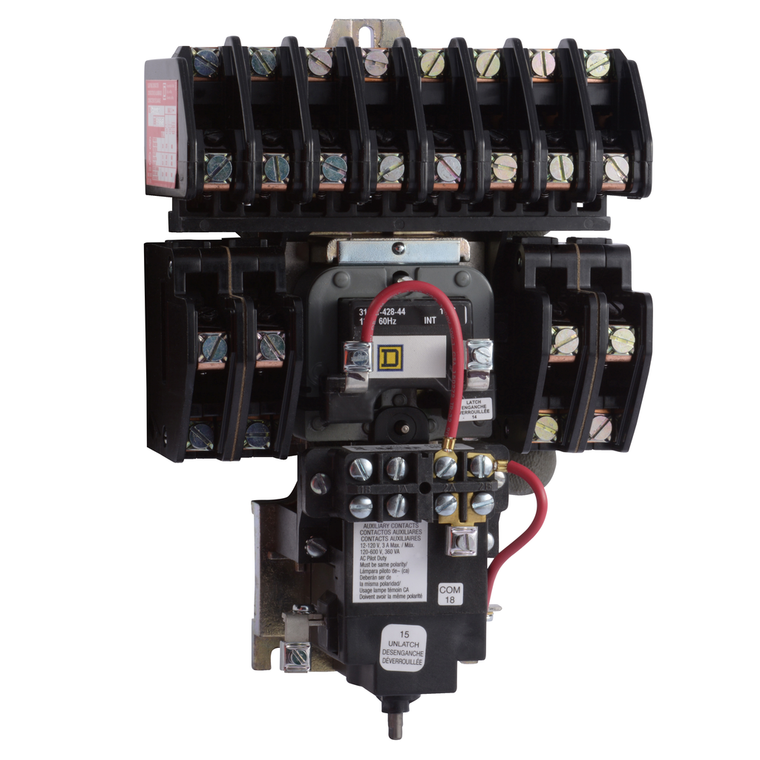

Schneider Electric 8903LXO1000V04 Contactor, Type L, multipole lighting, mechanically held, 30A, 10 pole, 600 V, 277 VAC 60 Hz coil, open style

SKU:

8903LXO1000V04

UPC:

MPN:

8903LXO1000V04

Condition:

New

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Warranty:

18 months

Local Signaling:

no indicator

Depth:

83 mm

Halogen Content Performance:

Halogen free plastic parts product

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Poles Description:

10P 10 NO

Range Of Product:

8903LX

Pvc Free:

Yes

Inrush Power In Va:

180-180 VA 60 Hz || 25-25 VA 50/60 Hz

Country of Origin:

Mexico

Environmental Disclosure:

ENVPEP1407018EN

Toxic Heavy Metal Free:

Yes

[Uc] Control Circuit Voltage:

277 V AC 60 Hz

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Reach Free Of Svhc:

Yes

Electrical Connection:

screw-clamp terminals

Line Rated Current:

20-20 A tungsten || 30-30 A fluorescent

Rohs Exemption Information:

Yes

Control Type:

no control units

Nema Degree Of Protection:

not rated (open device)

Product Certifications:

UL Listed || CSA

Circularity Profile:

N/A

Eu Rohs Directive:

Compliant

Additional Included Device:

none

Control Circuit:

separate control circuit

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

Mechanically Held Lighting Contactor
