Schneider Electric

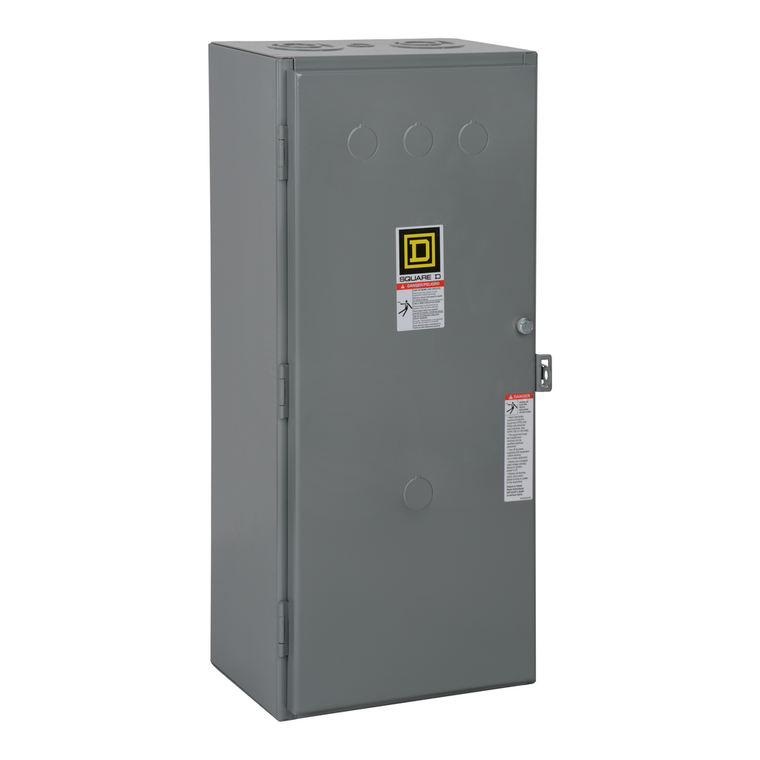

Schneider Electric 8903SQG2V03 Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 220/240VAC 50/60Hz coil, NEMA 1

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 8903SQG2V03 Contactor, Type S, multipole lighting, electrically held, 100A, 3 pole, 220/240VAC 50/60Hz coil, NEMA 1

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8903SQG2V03

UPC:

MPN:

8903SQG2V03

Condition:

New

Poles Description:

3P

Eu Rohs Directive:

Not compliant

Electrical Connection:

lugs

Product Certifications:

UL Listed || CSA

Control Type:

no control units

Depth:

228 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Country of Origin:

Mexico

Auxiliary Contact Composition:

without

[Uc] Control Circuit Voltage:

240 V AC 60 Hz || 220 V AC 50 Hz

Local Signaling:

without pilot light

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nema Degree Of Protection:

NEMA 1 painted sheet steel surface none

Additional Included Device:

none

Warranty:

18 months

Range Of Product:

S

Line Rated Current:

100 A

Product Or Component Type:

Electrically Held Lighting Contactor
