Schneider Electric

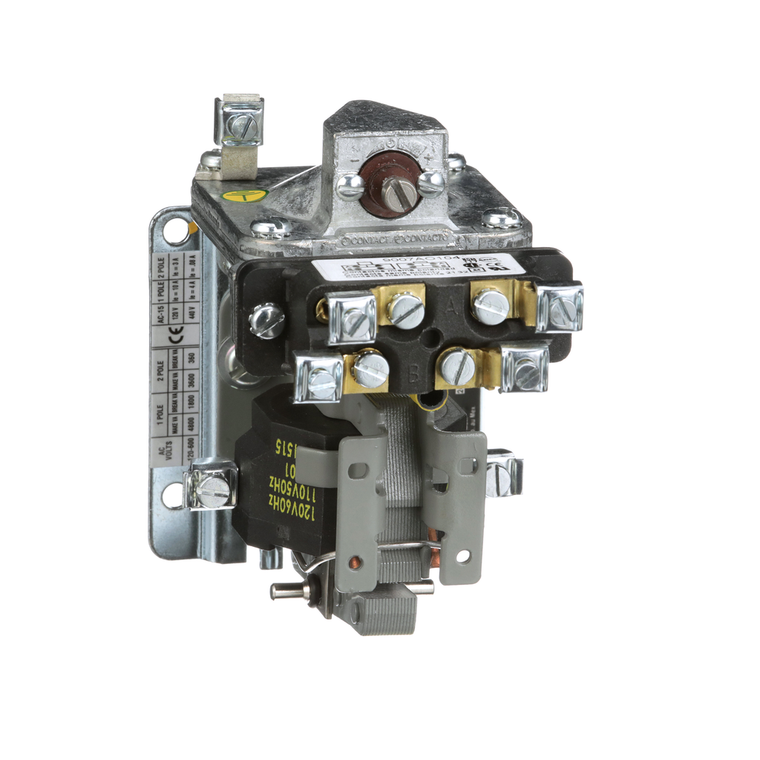

Schneider Electric 9050AO10DV02 Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open

(No reviews yet) Write a Review
SKU:
9050AO10DV02
MPN:
9050AO10DV02
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Time Delay Type:
off-delay
Depth:
111 mm
Mercury Free:
Yes
Range Of Product:
9050A/H
[Uc] Control Circuit Voltage:
120 V AC 60 Hz || 110 V AC 50 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Time Delay Range:
0.1 s...1 min
Mounting Support:
panel
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
timer
Maximum Switching Voltage:
600 V AC
Warranty:
18 months
Contact Operation:
time delayed 1 NO + 1 NC
Product Certifications:
UL Listed || CSA
Line Rated Current:
15 A
Ambient Air Temperature For Operation:
68-104°F
Rohs Exemption Information:
Yes
Electrical Connection:
screw-clamp terminals
Reset Response Time:
29 ms - on-delay || 27 ms - off-delay
Country of Origin:
Mexico
Switch Function:
SPDT
$504.00

Description

9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this off delay timer is typically about one minute. This timing relay can be converted by a customer from off delay to on delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. This pneumatic timing relay is 2.64 inches tall, 4.02 inches wide and 4.37 inches deep. 9050A pneumatic timing relays are UL listed and CSA certified.
