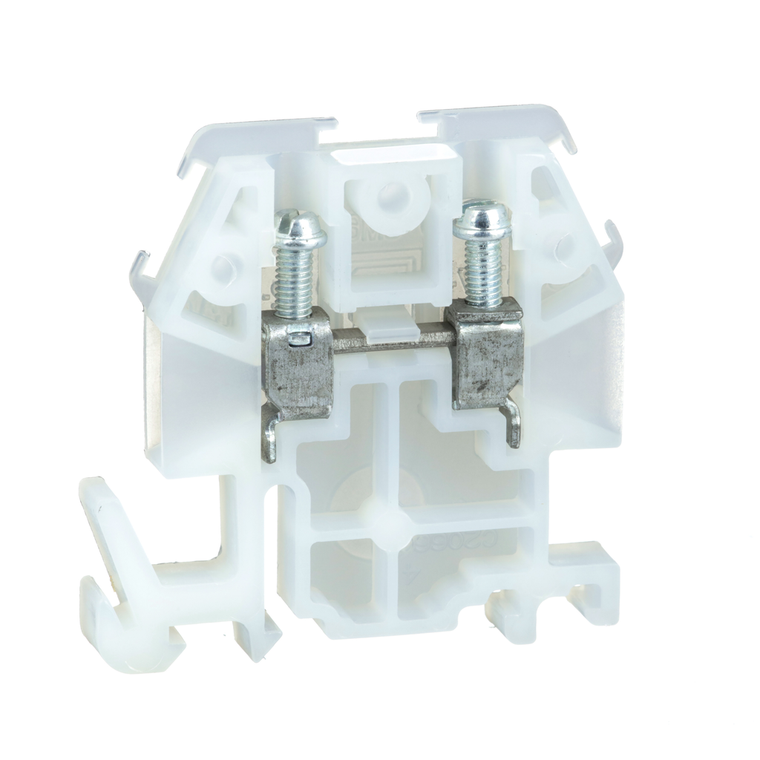

Schneider Electric 9080GM6 Terminal Block 600V 30Amp Nema +Options Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
- Reach Free Of Svhc:
- Yes
- Mounting Support:
- 9080GH track || 35 mm DIN rail
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Localisation On Device:
- standard
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Width:
- 1.72 in
- Pvc Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-257 °F
- Awg Gauge:
- AWG 22...AWG 10 copper
- Product Certifications:
- CE || CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility:
- GM6B
- Product Or Component Type:
- terminal block
- Height:
- 1.82 in
- Quantity Per Set:
- set of 50
- Range Of Product:
- 9080G
- Protection Type:
- fingersafe DIN 57470
- Depth:
- 0.235 in
- Electrical Connection:
- zinc plated steel box lugs
- Line Rated Current:
- 30-30 A UL || 30-30 A CSA
- Number Of Terminal Blocks:
- 51 per foot
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Color:
- natural
- Connections - Terminals:
- lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
- Rohs Exemption Information:
- Yes
