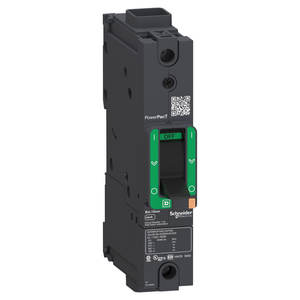

Schneider Electric BDA160505 Molded Case Circuit Breaker 347V 50A
Schneider Electric
$547.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 50A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with a C phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Standards:
- NMX J-266 || EN/IEC 60947-2 || NEMA AB1 || UL 489 || EN/IEC 60947-5-1 || GB 14048.2 || CSA C22.2 No 5
- Range:
- PowerPact
- 9 Mm Pitches:
- 3
- Circuit Breaker Application:
- HACR rated
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Mounting Height:
- 38.1 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Height:
- 137 mm
- Electrical Connection:
- I-Line connection, line || lugs, load
- Trip Unit Technology:
- thermal-magnetic
- Local Signalling:
- presence of auxiliary contacts flag green)
- Ik Degree Of Protection:
- IK07 IEC 62262
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity Code:
- D
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Connection Pitch:
- 27 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Rohs Exemption Information:
- Yes
- Product Name:
- PowerPact B
- Product Or Component Type:
- circuit breaker
- Phase Connection:
- C
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Halogen Content Performance:
- Halogen free product
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 89 mm
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Environmental Disclosure:
- ENVPEP1610005EN
- Control Type:
- toggle
- Device Application:
- distribution
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Mounting Mode:
- I-Line
- Width:
- 27 mm
- Net Weight:
- 0.6375 kg
- Color:
- Gray RAL 7016)
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Quantity Per Set:
- set of 1
- Mercury Free:
- Yes
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 14 kA 125 V DC 50/60 Hz UL 489 || 10 kA 600/347 V AC 50/60 Hz UL 489
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Line Rated Current:
- 50-50 A
- Circularity Profile:
- N/A
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- Device Short Name:
- BD 050
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Quality Labels:
- CE
- Network Frequency:
- 50/60 Hz
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Poles Description:
- 1P
- Wire Stripping Length:
- 20 mm
