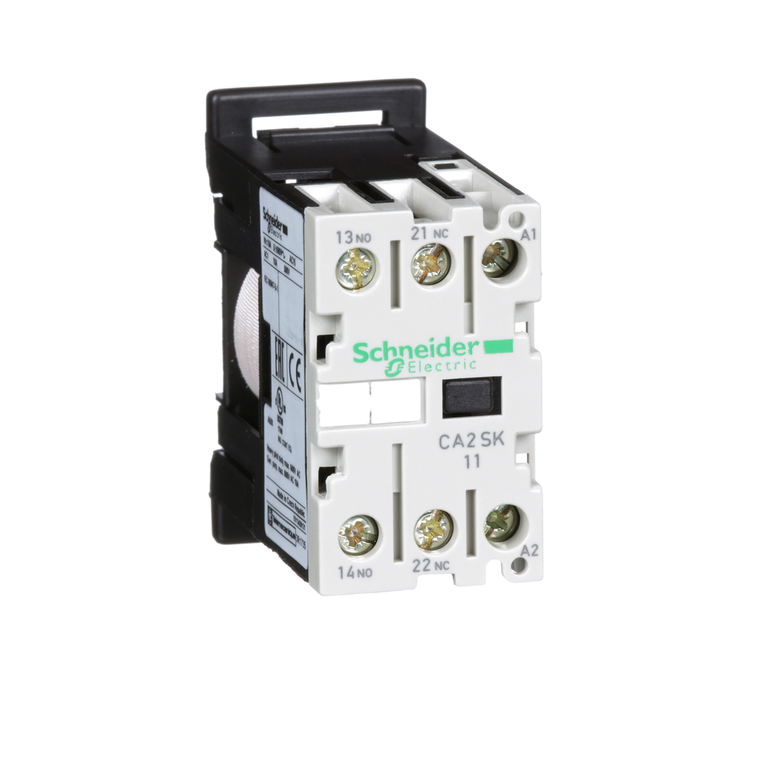

Schneider Electric CA2SK11UE7 Control relay, TeSys SK, 1NO+1NC, <= 690V, 277V AC coil
SKU:
CA2SK11UE7
UPC:
MPN:
CA2SK11UE7
Condition:
New
Mechanical Durability:
10 Mcycles
Eu Rohs Directive:
Compliant
Circularity Profile:
ENVEOLI1503003EN
Rohs Exemption Information:
Yes
Hold-In Power Consumption In Va:
4.2-4.2 VA (at 20°C)
Toxic Heavy Metal Free:
Yes
Inrush Power In Va:
16-16 VA (at 20°C)
[Ui] Rated Insulation Voltage:
690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
Product Certifications:
CB Scheme || cULus || EAC || CE || UKCA
[Uc] Control Circuit Voltage:
277 V AC 50/60 Hz
Weight:
0.132 kg
Product Name:
TeSys CASK
Connections - Terminals:
screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 m
Ambient Air Temperature For Storage:
-50-70°C
Operating Time:
6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing || 8...10 ms coil de-energisation and NC closing || 8...16 ms coil energisation and NC opening
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
