Schneider Electric CAD503BD TeSys Deca control relay - 5 NO - <= 690 V - 24 V DC standard coil

Schneider Electric CAD503BD TeSys Deca control relay - 5 NO - <= 690 V - 24 V DC standard coil

Schneider Electric
SKU:
CAD503BD
$112.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

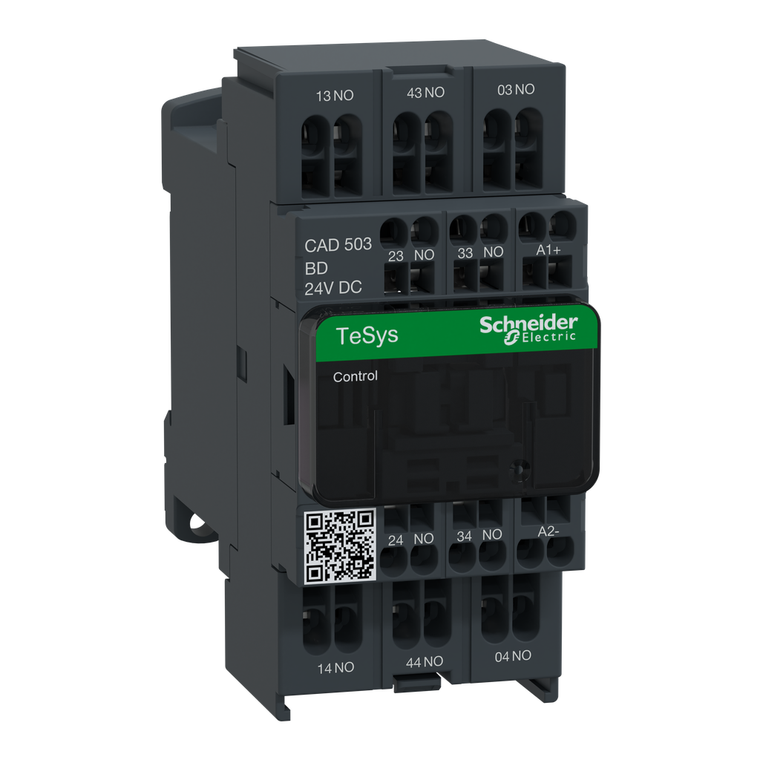

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Additional Information
Circularity Profile:
ENVEOLI1102030EN
Operating Altitude:
0...9842.52 ft (0...3000 m)
Hold-In Power Consumption In W:
5.4-5.4 W 20°C
Connections - Terminals:
spring terminals 1 1-2.5 mm²flexible without cable end || spring terminals 2 1-2.5 mm²flexible without cable end || spring terminals 1 1-2.5 mm²solid without cable end || spring terminals 2 1-2.5 mm²solid without cable end
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Weight:
0.58 kg
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-60-80°C
Mechanical Robustness:
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Protective Treatment:
TH IEC 60068
Operating Time:
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Contactor Application:
control circuit
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Net Weight:
0.58 kg
Minimum Switching Voltage:
17 V
Control Circuit Type:
DC standard
Environmental Disclosure:
ENVPEP110230EN
Minimum Switching Current:
5 mA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Operating Rate:
180 cyc/mn
Product Name:
TeSys CAD
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
93 mm
Utilisation Category:
DC-13 || AC-15 || AC-14
Device Short Name:
CAD
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
Mechanical Durability:
30 Mcycles
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Inrush Power In W:
5.4-5.4 W 20°C)
Eu Rohs Directive:
Compliant with Exemptions
Range:
TeSys || TeSys Deca
Insulation Resistance:
> 10 MOhm
Pole Contact Composition:
5 NO
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Ip Degree Of Protection:
IP2X front face VDE 0106
[Uc] Control Circuit Voltage:
24 V DC
Time Constant:
28 ms
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
