Schneider Electric

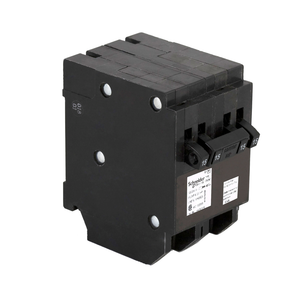

Schneider Electric CHOMT1515220CP Quad tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

(No reviews yet) Write a Review
SKU:
CHOMT1515220CP
MPN:
CHOMT1515220CP
Condition:
New
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
miniature circuit-breaker
Number Of Spaces Required:
2
Toxic Heavy Metal Free:
Yes
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
40°C
Mercury Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Awg Gauge:
AWG 14...AWG 8 aluminium/copper
Line Rated Current:
20 A || 15 A
Mounting Mode:
plug-on
Range Of Product:
Homeline
Rohs Exemption Information:
Yes
Electrical Connection:
screw clamp terminals
Product Certifications:
CSA
Country of Origin:
Mexico
Eu Rohs Directive:
Compliant
Short-Circuit Current:
10 kA
Circuit Breaker Type:
quad
[Ue] Rated Operational Voltage:
120/240 V AC
$120.00

Description

CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two CHOM pole spaces. This breaker consists of a two pole breaker in the middle and a single breaker on each side. It provides a standard circuit protection and is HACR rated. The two pole breaker is rated 20A at 120/240VAC and the single pole breakers are rated 15A and 15A at 120/240VAC. This circuit breaker provides 10kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. CHOMT tandem breakers are CSA certified. They are contractor packed.
